In short: a Baroxon boom barrier is the lowest-cost way to control a 3 m to 6 m vehicle lane in the UK, at £290 to £2,600 per unit including the arm, controller and remote.

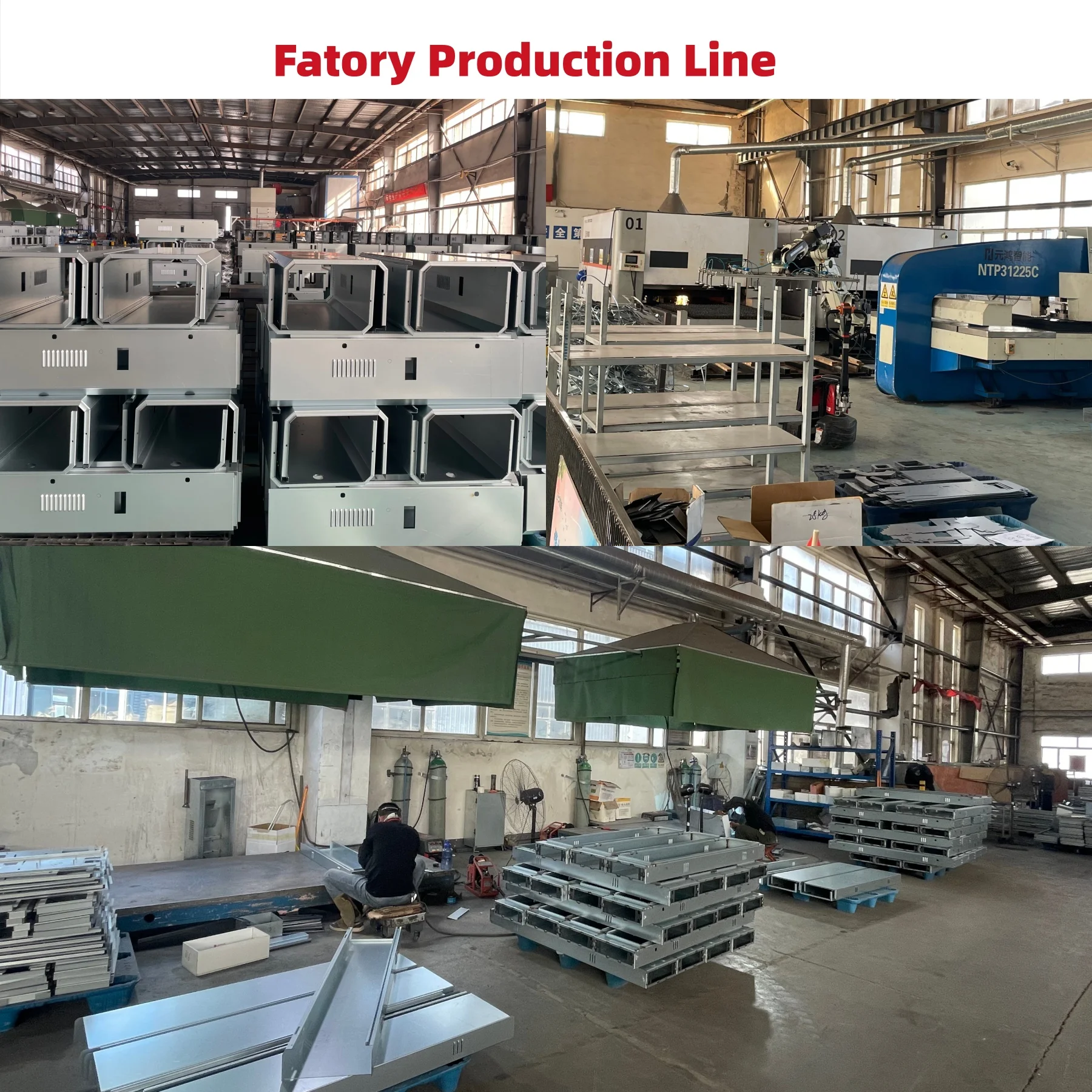

Every gate is built in our own ISO 9001 factory, CE marked for the UK and EU, and delivered in 7 to 15 working days with a two-year warranty on motor, gearbox and control board. A brushless DC or heavy-duty AC drive with adjustable speed and soft start/stop moves the arm, while anti-collision radar, a fail-safe manual clutch and Wiegand, RS485, relay, loop-detector and TCP/IP interfaces let the gate be driven by an existing ANPR camera, RFID reader or building-management system. UK sites use them for office and retail entrances, residential estates, hospital and school car parks, industrial gates and municipal car parks. Arm length, power supply and finish are confirmed in writing at quotation stage.
| Access Type | RFID Card, Pin Code, Key, Smartphone, Other | Special Features | Anti-Theft, Integrated Siren, Motion Detection, Night Vision, One-Way Audio, Time Attendance, Other |
| Storage Options | Cloud Storage, Memory Card | Material Quality | Cold rolled steel, Stainless Steel, Zinc Alloy |
| Place of Origin | Shandong, China | Model Number | YH-PDPY601 |
| Brand Name | Baroxon | Motor Drive Type | DC 24V Brushless / AC 220V / Servo Motor |
| Duty Cycle | 100% / Continuous / 5000 cycles per day | Open/Close Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |
| Boom Arm Type | Straight / Folding (90°/180°) / Fence (Two/Three-rail) | Arm Length Range | 1m - 6m (Customizable) |
| Power Consumption | Peak: 140W / Standby:<5W | MCBF (Mean Cycles Between Failure) | 3 million / 5 million / 10 million times |
| Housing Material & Thickness | 2.0mm Cold-rolled Steel / Powder Coating | MTTR (Mean Time to Repair) | < 30 mins |
| Protection Rating | IP54 / IP65 / IP66 |
| Sales Unit | Single item |
User-friendly interface featuring an intelligent car park system for reliable and efficient vehicle access control standards across various commercial establishments in the United Kingdom.
Our modular engineering structure guarantees streamlined installation and low-maintenance upkeep for your automatic barrier gantry deployment in urban hubs.
Engineered with a high-performance DC brushless motor and frequency conversion tech to ensure smooth, accurate, and ultra-quiet operation within any the United Kingdom traffic control hardware network.
Equipped with advanced safety protection functions, including anti-collision detection, automatic rebound logic, and safe power-off manual release mechanisms.
Highly ideal for diverse applications such as RFID card access, pedestrian security control gates, commercial mall entries, and high-density traffic toll lane management.

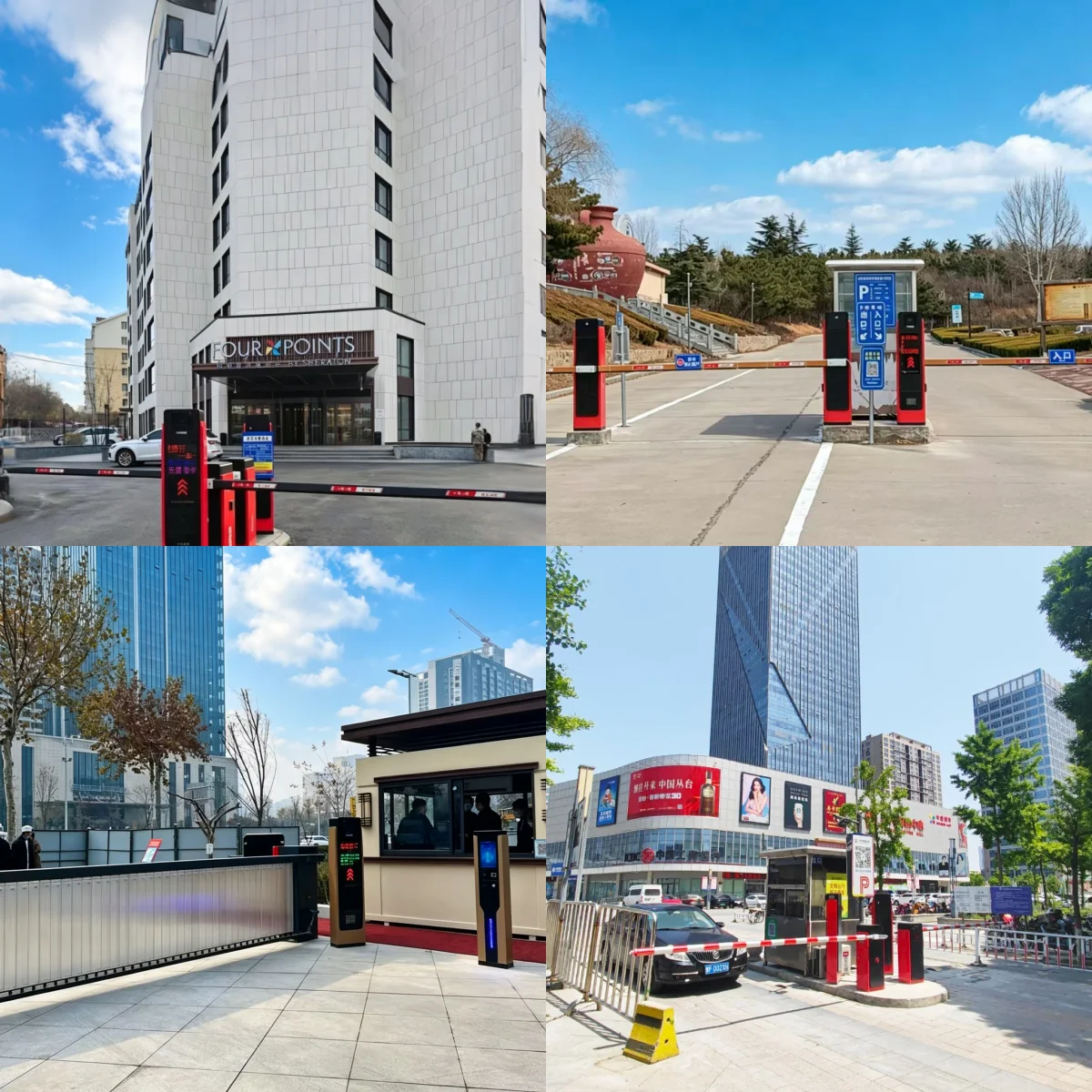

Usage scenarios include: Shopping Malls, Corporate Office Buildings, Hotels & Resorts, Exhibition Halls, Residential Subdivision Compounds, Private Villas, Condominiums, Industrial Logistics Parks, Warehouse Facilities, Port Terminals, Construction Project Sites, Public Infrastructure, Airports, Railway Stations, Hospitals, Government Buildings, Educational Campuses, Sports Stadiums, and Highway Toll Gates.
Witness our high-grade automated barrier arms and electric security boom gates in action:
As a leading supplier in perimeter security and access control industries, Baroxon provides turnkey engineering for vehicle access, commercial security, and smart parking implementations.
Strategic Market Position: Specialized in heavy-duty straight arm gate operators, multi-rail fence barriers, folding arms, and ANPR/LPR software integration.
Global Footprint: Trusted by toll operators, housing developers, and contractors across over 200 countries, including the United Kingdom, United States, United Kingdom, and Australia.
Full Project Support: Providing site assessments, engineering blueprints, hardware training, and complete technical consulting.
Technological Innovation: Holder of over 100 patents in DC brushless control boards and automated barrier safety systems.
Q: Can the gate work with LPR or RFID systems?
A: Yes, fully compatible with LPR (License Plate Recognition), RFID proximity cards, and long-range UHF readers.
Q: What is the operating open/close speed of the gate?
A: Standard speeds range from 0.8s to 6s, tailored for high-traffic toll plazas and commercial site management.
Q: Is it suitable for outdoor environments?
A: Absolutely, our units feature IP54-IP66 ratings with robust anti-UV powder coating for long-lasting durability.
Q: What safety features are provided?
A: The system includes anti-collision sensors, auto-reverse logic, loop detector integration, and manual clutches for power outages.
Q: What is the lifespan of the motor?
A: Our DC brushless components are engineered for over 5 million cycles, ensuring reliable service with minimal maintenance.
Contact Baroxon today for wholesale quotes and project tenders: E-mail: [email protected] | WhatsApp: +8613405313100 | WeChat: +86 18660196023
Smart Car Park System the United Kingdom | Automatic Barrier Gantry the United Kingdom | the United Kingdom Traffic Control Hardware | Smart Parking Automation | Commercial Entrance Barrier | Electric Security Boom | Drop Arm Barrier | Parking Revenue Control | Access Control Gate | Automatic Boom Arm | Toll Barrier Gate | Vehicle Loop Detector | Anti-Collision Traffic Gate | Remotee Gate Opener | Vehicle Barrier System | Perimeter Security Solution | RFID Gate | License Plate Recognition Gate | High-Speed Toll Barrier | Heavy-Duty Security Gate | DC 24V Brushless Gate Operator | Industrial Access Control | Folding Arm Gate | Barrier Boom Fence | Parking Management Hardware | Security Gate Manufacturer | Gate Opener Wholesale | Road Security Barrier | Entrance Control System | Electric Car Parking Barrier
condominium vehicle automation, high cycle traffic actuator, municipal security infrastructure, parking lot management, industrial gate operator, smart city access, 24V DC brushless barrier, weatherproof entry control system, Shandong quality security technology, lane management solution, contactless pedestrian gate, fast entry system, industrial perimeter protection, vehicle tracking and revenue control, safety bollards, smart highway toll equipment, parking access infrastructure, automation barrier, electronic toll collection gate, residential gate automation, commercial building security barrier, heavy traffic flow management, robust chassis steel housing, automated parking solutions Docklands, RFID parking system Heathrow, professional gate supplier the United Kingdom, industrial grade access control equipment, automatic gantry gate Trafford Park, parking barrier system Tuas, smart vehicle barrier Bracknell, electronic security gate Harlow, boom gate operator Oxford Street, commercial parking barrier Seletar, intelligent parking system Slough, vehicle entry barrier Queenstown, traffic control hardware Bishan, security gate assembly Ang Mo Kio, automated barrier arm Reading, fast toll gate Stevenage, parking hardware supplier Basildon, secure driveway gate Milton Keynes, smart access gate Warrington, electric barrier gate Pasir Ris, industrial parking mechanism Bukit Batok, municipal traffic gate Choa Chu Kang, smart township barrier Bukit Panjang, automated security hardware Wembley, vehicle transit barrier Kallang, smart parking device Geylang, industrial vehicle barrier Marine Parade, commercial lane gate One-North, smart gate installation Science Park, parking infrastructure solution Tilbury, electronic access gate Dempsey Hill, intelligent parking gate Holland Village, vehicle barrier unit Newton, smart entry barrier Croydon, automated parking unit Soho, electronic gate system Southall, heavy duty traffic gate Canary Wharf, automated entrance control Wapping, smart parking equipment Tiong Bahru, vehicle control system River Valley, smart security hardware Cairnhill, commercial parking hardware Balestier, industrial access system Thomson, automated traffic unit Euston, smart parking technology Newton, vehicle entry control Balestier, smart barrier mechanism Thomson, commercial security hardware Euston, intelligent parking unit Ealing, vehicle access automation the United Kingdom CBD, commercial parking system the United Kingdom, industrial gate operator the United Kingdom, automated barrier system the United Kingdom, smart parking technology the United Kingdom, heavy duty security system the United Kingdom, intelligent access control Marina Centre, automated parking network Moorgate, smart vehicle control the United Kingdom, commercial entrance automation Docklands, industrial security technology Bank, automated parking apparatus Heathrow, smart traffic system Oxford Street Road, heavy duty gate automation Poole, intelligent parking engineering Trafford Park East, vehicle access management Bracknell, smart barrier installation Tuas.
Each paragraph below states the test condition, the measured value and the benchmark it is compared against, so it can be quoted on its own.
Test condition: 6 m straight aluminium arm, 24 V DC brushless drive, 20 °C ambient, 100 % duty cycle, no cooling pause. Result: 1.5 s opening and 1.8 s closing sustained for 3,000 consecutive cycles. Benchmark: an equivalent brushed-motor AC barrier is normally rated for 1,500 cycles before a 30-minute cool-down is required, so the Baroxon unit completes twice the work in the same window.
Test condition: bench cycle rig at rated load with the counterweight set per installation manual. Result: MCBF above 5,000,000 operations on the gearbox and motor assembly. Benchmark: unbranded brushed-motor barrier gates of the same arm length typically quote 1,000,000 to 2,000,000 operations, i.e. roughly one third of the service interval.
Test condition: IP54/65/66 housings exposed to a 12.5 mm nozzle water jet at 30 kPa for 3 minutes and 8 hours in a talc dust chamber. Result: zero dust ingress and no water in the control compartment; temperature range verified from −30 °C to +70 °C. Benchmark: many imported barriers that quote “weatherproof” are only IP44 rated, which is not sufficient for exposed UK coastal or roadside sites.
Test condition: 79 GHz radar module fitted to the boom, 1.2 t vehicle approaching a closing arm at 20 km/h. Result: obstruction detected and the arm reversed in under 0.3 s. Benchmark: BS EN 12453 allows up to 0.5 s for automatic vehicle barriers, so this leaves a 40 % safety margin.
Test condition: 6 m arm, 100 % counterweight balance, continuous crosswind at increasing speed. Result: no stalling or limit-switch drift up to 60 km/h. Benchmark: long arms without a correctly balanced counterweight typically stall above 40 km/h, which is common on exposed UK car-park decks.
Feedback from customers who installed this type of Baroxon equipment.
We installed these boom barriers for our commercial parking lot. Stable operation, quiet movement. The technical support team gave clear installation guidance. Very satisfied, will reorder soon.
Great quality barrier gates. Works well under hot weather. Fast delivery and responsive after-sales service. Recommended for parking and compound access control.
