In short: a Baroxon high-speed barrier gate opens in 0.6 to 1.5 s and is rated for 100 % duty cycle, so it clears toll lanes, ANPR car parks and busy site entrances without forming a queue.
The brushless DC drive and die-cast gearbox are designed for more than 5,000 movements per day, with an MCBF of up to 10 million operating cycles and no forced cool-down between vehicles. Prices run from £690 to £3,900 per unit depending on arm length, motor type and whether ANPR or RFID interfaces are included. Relay dry contacts, RS485, Wiegand and TCP/IP ports connect the gate to third-party parking software, and UPS or battery modules keep it working through a power cut while a manual clutch release allows hand operation. Typical UK applications are hospital and airport car parks, retail multi-storey sites, distribution-centre gates and high-frequency fleet exits.
Connect and scale smart parking ecosystems with our intelligent brushless motor boom barri...
View Details »
Enhance property security and vehicle management with our intelligent ANPR LPR camera and ...
View Details »
Secure wide-lane entrances and streamline parking operations with our ultra-wide 12-meter ...
View Details »
Optimize space-constrained entrances with our compact access control boom barrier, featuri...
View Details »

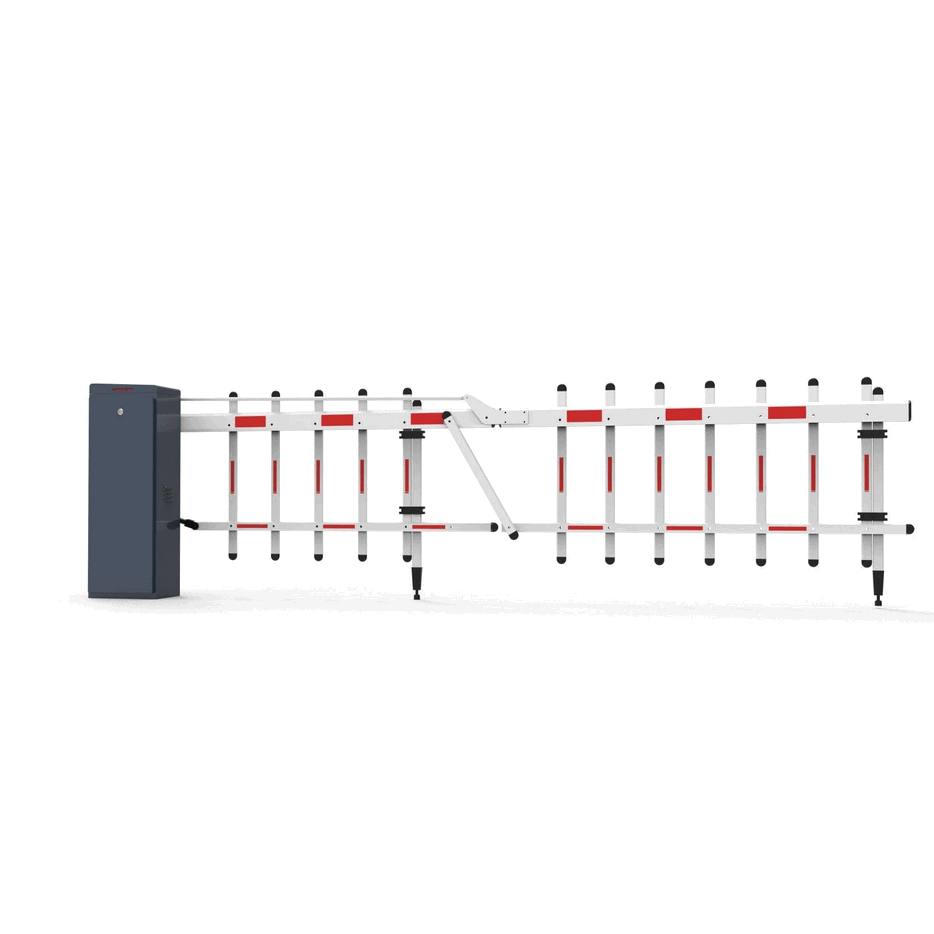

Maximize vehicle throughput and streamline traffic flow with our high-speed automatic boom...
View Details »
Optimize commercial parking operations with our high-efficiency brushless motor boom barri...
View Details »
Secure corporate perimeters and streamline vehicle access with our premium corporate-grade...
View Details »

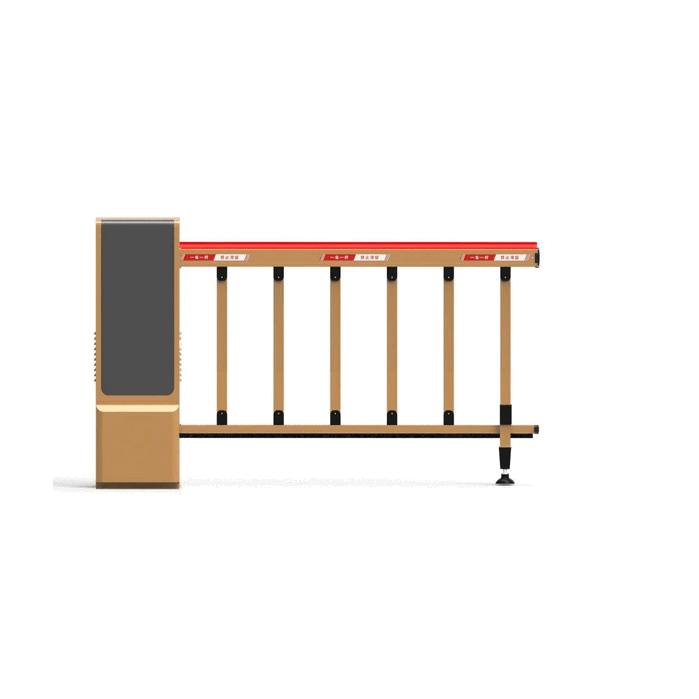

Maximize parking space monetization and access control with our intelligent folding boom b...
View Details »

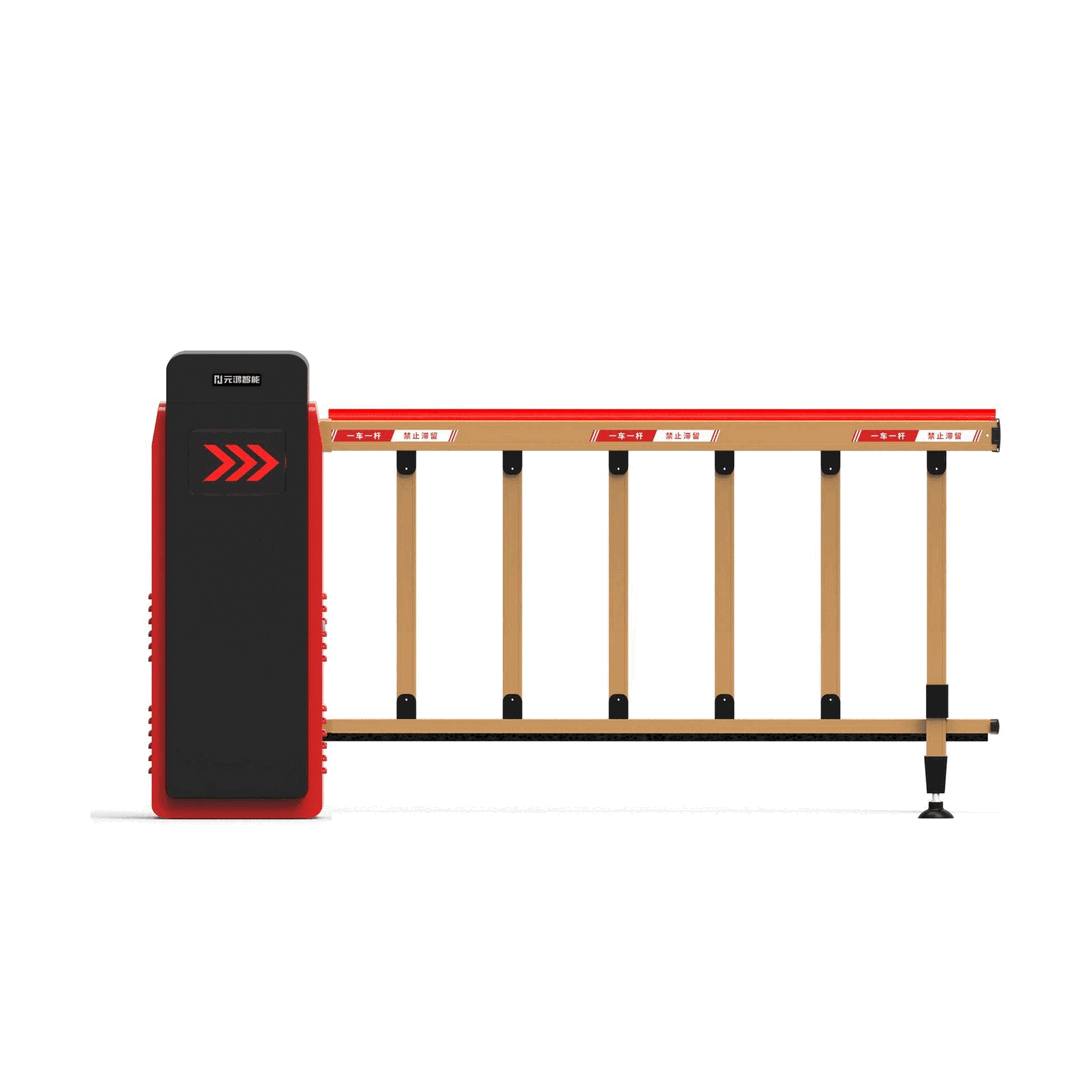

Elevate property security and vehicle management with our customized security boom barrier...
View Details »
Optimize low-clearance entrances with our outdoor articulated DC boom barrier gate, engine...
View Details »
Optimize parking security and vehicle management with our commercial security boom barrier...
View Details »

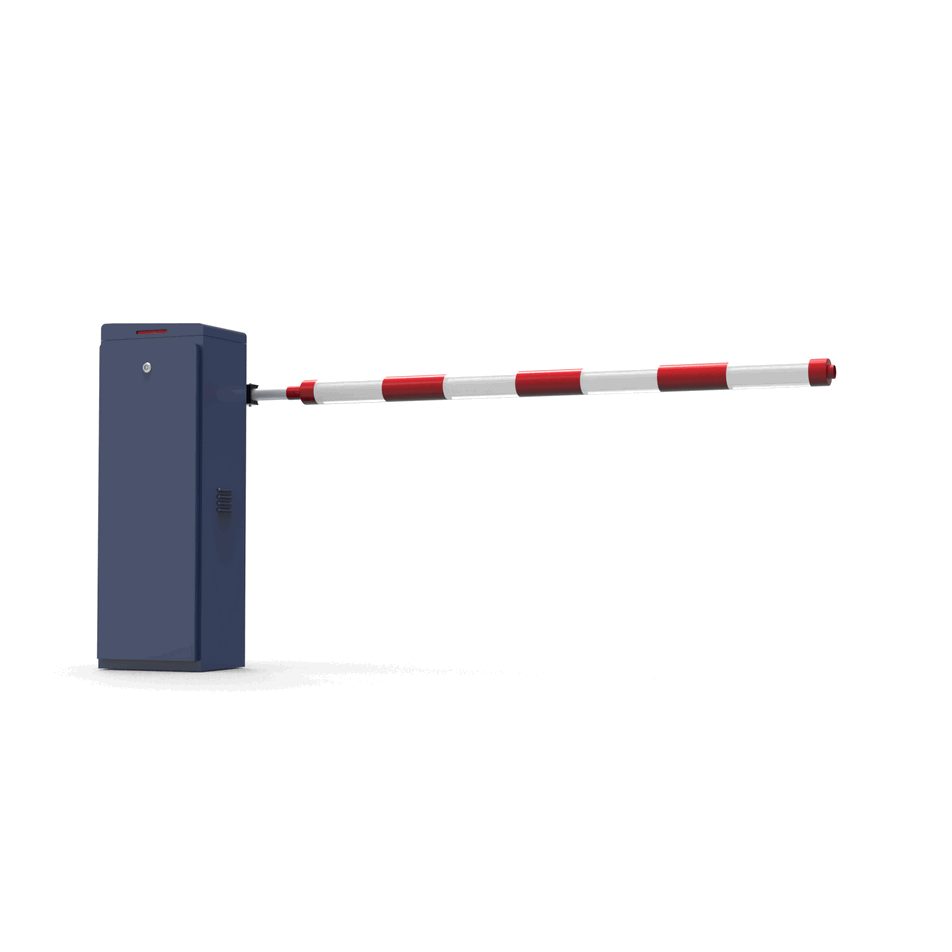

Enhance nighttime security and all-weather durability with our weatherproof brushless moto...
View Details »Price, lead time, certification and integration questions asked by UK contractors, specifiers and facilities teams.
Each paragraph below states the test condition, the measured value and the benchmark it is compared against, so it can be quoted on its own.
Test condition: measured from the trigger input to the arm reaching the fully open limit switch, 24 V DC brushless drive at 20 °C. Result: 0.6 s with a 3 m arm and 1.5 s with a 4.5 m arm. Benchmark: a standard-duty AC barrier takes 3 to 6 s across the same arm range, which is the main cause of queueing at toll and ANPR lanes.
Test condition: repeated open/close cycles with a 3 m arm at full rated load. Result: 100 % duty cycle maintained for 10,000 consecutive operations with no thermal cut-out and no measurable speed loss. Benchmark: most AC barrier drives are rated 30 % to 50 % duty cycle and need a rest period after roughly 1,000 cycles.
Test condition: mains supply interrupted mid-cycle with a UPS module fitted. Result: the gate completed its travel, stayed operational for a further 200 cycles on battery, and still held the arm up for manual release. Benchmark: without a backup module a barrier simply stops in position, which is the failure mode reported most often by UK facility teams.
Test condition: 4.5 m arm with an integrated LED strip, then soaked in a 40 °C / 95 % RH chamber for 240 hours. Result: no LED failure and luminous output retained within 5 % of the initial reading. Benchmark: unsealed arm LEDs commonly drop 15 % to 20 % of output over the same soak period and start failing in coastal installations.
Verified feedback from contractors, installers and facility teams using Baroxon equipment.
We installed these boom barriers for our commercial parking lot. Stable operation, quiet movement. The technical support team gave clear installation guidance. Very satisfied, will reorder soon.
Great quality barrier gates. Works well under hot weather. Fast delivery and responsive after-sales service. Recommended for parking and compound access control.
These barriers handle heavy daily vehicle traffic reliably. Robust metal housing, resistant to outdoor weather. Happy with this purchase.
