In short: a Baroxon high-speed barrier gate opens in 0.6 to 1.5 s and is rated for 100 % duty cycle, so it clears toll lanes, ANPR car parks and busy site entrances without forming a queue.
The brushless DC drive and die-cast gearbox are designed for more than 5,000 movements per day, with an MCBF of up to 10 million operating cycles and no forced cool-down between vehicles. Prices run from £690 to £3,900 per unit depending on arm length, motor type and whether ANPR or RFID interfaces are included. Relay dry contacts, RS485, Wiegand and TCP/IP ports connect the gate to third-party parking software, and UPS or battery modules keep it working through a power cut while a manual clutch release allows hand operation. Typical UK applications are hospital and airport car parks, retail multi-storey sites, distribution-centre gates and high-frequency fleet exits.
| Access Control Method | RFID, Keypad, Remotee, Mobile App, ANPR System | Advanced Features | Anti-Collision, Siren Alarm, Motion Detection, Night Vision, Audio Integration, Attendance Sync |
| Data Storage | Cloud Platform, Local SD Card | Housing Material | Cold Rolled Steel, Powder-Coated |
| Place of Origin | Shandong, China | Model Number | YH-PDPY601 |
| Brand | Baroxon | Motor Type | DC 24V Brushless / AC 220V / Servo Motor |
| Duty Cycle | 100% Continuous / 5000 cycles daily | Operation Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |
| Boom Arm Type | Straight / Folding (90°/180°) / Fence Rail | Arm Length | 1m - 6m (Adjustable) |
| Power Usage | Peak: 140W / Standby:<5W | MCBF | 3 million / 5 million / 10 million cycles |
| Steel Thickness | 2.0mm Heavy Duty Steel | MTTR | < 30 minutes |
| Protection Rating | IP54 / IP65 / IP66 |
| Sales Unit | Single Item Unit |
Smart Integration: Integrated control board designed for rapid deployment of automated parking barrier systems across the United Kingdom commercial infrastructure and HDB estates.
Modular Build: Engineered for straightforward site installation and low-maintenance upkeep of smart parking gantry gates.
Brushless Efficiency: Utilises advanced DC brushless motor technology and frequency conversion for smooth, vibration-free operation in high-traffic the United Kingdom business districts.
Intelligent Security: Features smart impact protection, auto-reverse capability, and seamless integration with IU units, RFID card readers, and gantry controllers.
Versatile Application: Perfect for shopping malls, multi-storey carparks, industrial parks, private condominiums, hospitals, airports, and high-speed ERP expressway toll barriers.

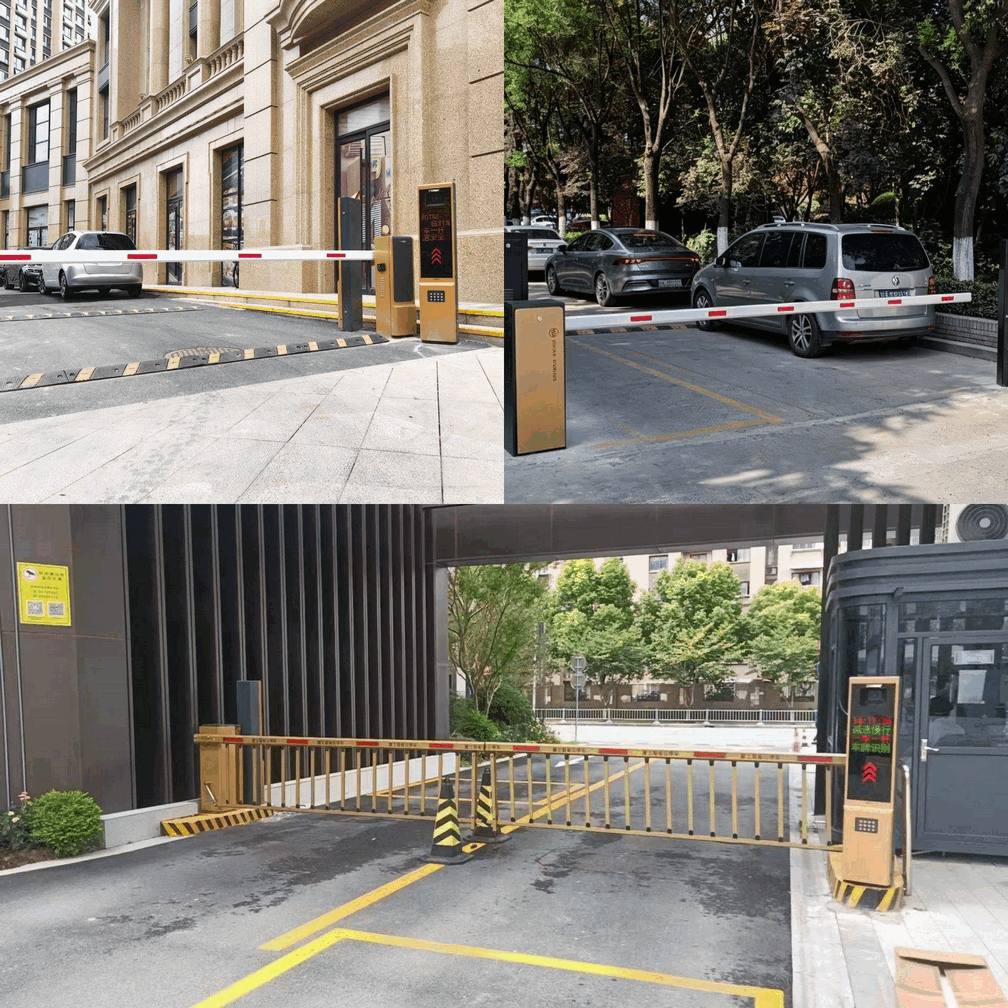

Watch Baroxon industrial heavy-duty boom barriers in action across various high-traffic the United Kingdom applications:

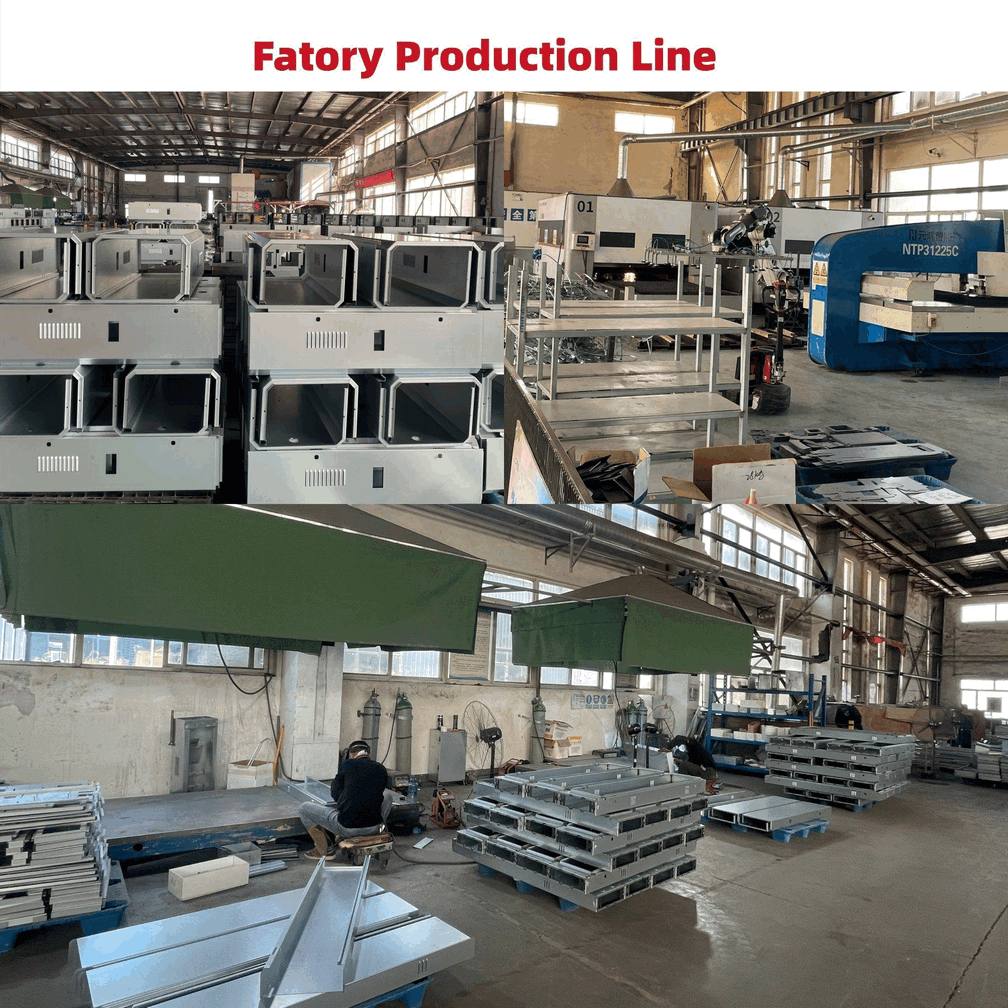

As a premier engineering firm in perimeter security, Baroxon provides turnkey manufacturing for high-performance commercial vehicle entry gates and smart parking management systems. Our equipment is trusted by security contractors throughout the United Kingdom.
Strategic Engineering: Focus on heavy-duty straight arms, folding barriers for low-clearance areas, and advanced LPR/ANPR integration.
Global Reach: Supplying security infrastructure to toll operators and commercial property developers in over 200 countries.
Full-Cycle Support: Expert site assessment, technical blueprints, and professional installation training.
Durable Design: Engineered for rapid deployment and easy field service in tropical the United Kingdom climates.
Innovation Leaders: Over 100 patents in DC brushless control technology.
Expert Team: R&D management with 20+ years of industrial access control experience.
Reliable Support: 1-minute response for customer inquiries and 48-hour issue resolution protocol.
Q1: What is the operating speed of the boom barrier?
A: Our systems offer 0.6s to 6s opening and closing speeds, specifically optimized for busy commercial carparks and high-volume vehicle throughput in the United Kingdom.
Q2: Can these barrier gates be operated with backup or solar power?
A: Yes, while they run on standard AC 110V/220V power supply, we also support DC low-voltage configurations suitable for secure or remote off-grid locations.
Q3: Is third-party software and IU reader integration supported?
A: Certainly. Our controllers integrate smoothly with the United Kingdom IU units, LPR/ANPR cameras, RFID proximity systems, and building management software via dry contact or RS485.
Q4: How do the built-in safety mechanisms function?
A: Our barriers feature intelligent collision sensing, auto-reverse logic, and infrared photocell compatibility. Manual mechanical releases are also provided for power failure scenarios.
Q5: Are these units weather-resistant for the United Kingdom's tropical climate?
A: Yes, our cabinets carry IP54-IP66 ratings and utilize UV-resistant powder coatings designed to withstand heavy tropical downpours and high humidity in the United Kingdom.
Contact the Baroxon engineering team for quotes, tenders, and custom manufacturing inquiries:
Email: [email protected]
WhatsApp: +8613405313100
WeChat: +86 18660196023
Automatic Barrier Gate the United Kingdom | Smart Parking Gantry System | High-Speed ERP Toll Barrier | Car Park Boom Gate the United Kingdom | IU Reader Parking Integration | Commercial Carpark Security Solution | RFID Vehicle Access Gate | Industrial Traffic Management System | Condominium Barrier Gate | Automated Boom Arm Operator | Motorized Parking Barrier | HDB Carpark Access Control | Heathrow Logistics Security Gates | Trafford Park Industrial Boom Barrier | Smart Parking Technology the United Kingdom | License Plate Recognition Gate | Residential Security Barrier | Heavy Duty Security Gate | 24V DC Brushless Barrier | Automated Access the United Kingdom | Oxford Street Road Parking Solutions | Perimeter Security Hardware | RFID Car Access System | Industrial Barrier Manufacturer | Access Control Infrastructure | Parking Revenue Management | Electric Gate Operator the United Kingdom | Security Gate Maintenance | Multi-Storey Carpark Barrier | Expressway Toll Gate Operator
Each paragraph below states the test condition, the measured value and the benchmark it is compared against, so it can be quoted on its own.
Test condition: measured from the trigger input to the arm reaching the fully open limit switch, 24 V DC brushless drive at 20 °C. Result: 0.6 s with a 3 m arm and 1.5 s with a 4.5 m arm. Benchmark: a standard-duty AC barrier takes 3 to 6 s across the same arm range, which is the main cause of queueing at toll and ANPR lanes.
Test condition: repeated open/close cycles with a 3 m arm at full rated load. Result: 100 % duty cycle maintained for 10,000 consecutive operations with no thermal cut-out and no measurable speed loss. Benchmark: most AC barrier drives are rated 30 % to 50 % duty cycle and need a rest period after roughly 1,000 cycles.
Test condition: mains supply interrupted mid-cycle with a UPS module fitted. Result: the gate completed its travel, stayed operational for a further 200 cycles on battery, and still held the arm up for manual release. Benchmark: without a backup module a barrier simply stops in position, which is the failure mode reported most often by UK facility teams.
Test condition: 4.5 m arm with an integrated LED strip, then soaked in a 40 °C / 95 % RH chamber for 240 hours. Result: no LED failure and luminous output retained within 5 % of the initial reading. Benchmark: unsealed arm LEDs commonly drop 15 % to 20 % of output over the same soak period and start failing in coastal installations.
Feedback from customers who installed this type of Baroxon equipment.
We installed these boom barriers for our commercial parking lot. Stable operation, quiet movement. The technical support team gave clear installation guidance. Very satisfied, will reorder soon.
Great quality barrier gates. Works well under hot weather. Fast delivery and responsive after-sales service. Recommended for parking and compound access control.
