| System Type | Professional Carpark Security System / Electronic Parking Lock | Place of Origin | Shandong, China (International Export Standards) |
| Brand Name | Baroxon | Model Number | Ba-CL-04 PRO |
| Warranty | 2 Years (Comprehensive Technical & Maintenance Support) | Sales Unit | Single Item / Commercial Project Bulk Procurement |
Baroxon Smart Remote Control Parking Lock Technical Specifications:

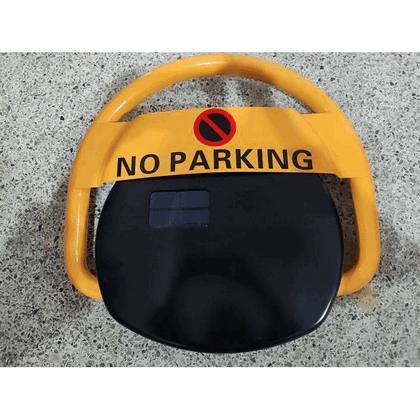

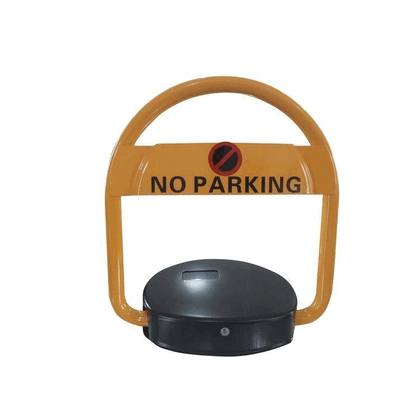

The intelligent automated parking barrier unit engineered by Baroxon incorporates cutting-edge photoelectric sensor positioning along with a heavy-duty anti-collision mechanical chassis architecture. Built with an ergonomic circular profile, this system delivers complete protective coverage, sophisticated component alignment, and high-performance operation. This automatic parking lock system serves as the ultimate solution for estate management, real estate developers, and civil contractors aiming to eliminate unauthorized vehicle bay hijacking across premium residential estates, commercial shopping complexes, hotels, business parks, and multi-storey carparks.
Superior Structural Materials:
- Chassis Base: High-grade cold-rolled structural steel
- 180-Degree Flexible Anti-Collision Warning & Alarm Mechanism
Core Advantages for Commercial Procurement:
* Smart Intelligence: Advanced anti-collision sensor technology combined with a long-range wireless remote control operating up to 20 Meters. An automated buzzer alert triggers instantly if obstruction is detected.
* Low Maintenance: Flexible power configurations featuring rechargeable accumulator batteries or dry cells. Optimized for extreme outdoor weather durability and stability.
* Heavy-Duty Build: Rated IP67 water-resistance. The streamlined circular styling paired with thick structural steel prevents physical deformation and safely supports vehicle loads up to 500kg when lowered.
* Motor Overload Protection: Built-in automatic circuit breaker immediately responds to extreme external resistance, protecting the internal drive motor from electrical short circuits.
* Smart Power Alert: Integrated LED flash indicator and internal acoustic buzzer signal low battery voltage levels requiring recharge cycles.
* Auto-Reset Mechanism: The rocker arm automatically re-extends to its upright position within 3-5 seconds once external load or pressure is cleared.
* Anti-Theft Security: Anchor bolts are concealed underneath the internal locking cover, accessible solely via manual keys held by authorized lot owners.
* Multi-Unit Synchronization: A single wireless remote control transmitter can be programmed to operate multiple Baroxon automatic parking barriers simultaneously.
1. Rocker Arm Assembly | 2. Alarm Siren Module | 3. Battery Compartment | 4. External Chassis Box Assembly
5. Photoelectric Sensor | 6. Drive Shaft | 7. Anti-Collision Device
8. Gearbox | 9. Electric Motor | 10. Control Mainboard
Maintenance Note: Regularly clear dust, sand, and stone debris around the chassis base perimeter to preserve maximum "Parking Security" performance and maximize operational service life.
| Included Accessories | Remote Control*2, Manual Key*2, Solar Cell Panel*1, Expansion Anchor Bolts*3, User Manual*1 | ||
| Operation Method | Wireless Remote Control / Manual Override | Motor Model | KR-540 DC Reduction Motor (High Torque Output) |
| Chassis Material | Thick Cold-Rolled Structural Steel Plate | Physical Dimensions | 400*460*75(mm) or 550*460*90(mm) |
| Base Thickness | 2/3(Connection Section)mm | Casing Thickness | 2.0mm |
| Pipe Wall Thickness | 1.1mm | Gross Weight (G.W) | 8KGS |
| Net Weight (N.W) | 7KGS | Packaging Size | 480*480*90(mm) |
| Motor Output Power | 10W | Operating Time | ≤5s (High-Speed Quick Response) |
| Voltage | 4V | Arm Lift Height | 400mm |
| Working Current | ≤0.85A | Control Range | ≥15m |
| Project Advantages | 1. High compressive resilience: Withstands 3-5 ton vehicle weight loads. 2. Superior moisture sealing: Certified IP67 outdoor rating (Water-Resistant). | ||

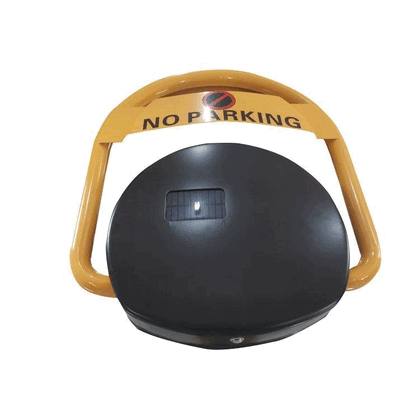

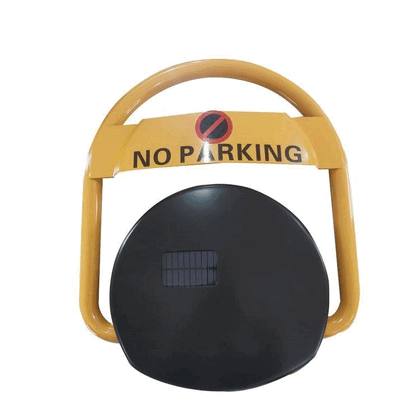

1. Solar Power Integration: The top casing cover features eco-friendly solar panels with integrated smart circuits, capturing solar radiation for continuous autonomous power supply.
2. Sealed Base Chassis: The internal base assembly utilizes insulated aluminum alloy material, delivering outstanding water-resistance and corrosion protection superior to standard iron plates, preventing rust in high-humidity climates.
3. Dual Mode Supply System: Supports hybrid rechargeable lithium cells combined with onboard solar panels for 24/7 unassisted operational cycles without routine manual battery charging.
Video: Installation Guidelines and Vehicle Crush Endurance Testing for Baroxon Ba-CL-04 Automatic Parking Lock in Commercial Estates
1. Q: Is the Ba-CL-04 unit secure for outdoor installation exposed to heavy rainfall?
A: Yes, it is fully weather-proofed. The entire housing unit is built to industrial IP67 waterproof standards with a sealed aluminum base structure to completely block water seepage, ground moisture, and oxidation rust.
2. Q: How long does the internal battery pack last under typical daily operations?
A: Standard dry cells provide over 1 year of operation. When utilizing the rechargeable accumulator option paired with our Solar Cell panels, energy is continuously replenished via sunlight, delivering virtually maintenance-free service life for high-turnover parking management solutions.
3. Q: Can developers or contractors request custom branding for large-scale building developments?
A: Yes, we provide full OEM custom branding services for civil contractors, real estate developers, and facility managers internationally, along with custom solar panel cover designs tailored to project specs.
4. Q: What happens if an unauthorized vehicle accidentally strikes or drives over the barrier arm?
A: The 180-degree anti-collision protection system instantly triggers an acoustic warning alarm while allowing the mechanical rocker arm to flex downward along the direction of pressure. It automatically resets back to position within 3-5 seconds after the vehicle moves away, protecting internal gears from structural damage.
