In short: a Baroxon high-speed barrier gate opens in 0.6 to 1.5 s and is rated for 100 % duty cycle, so it clears toll lanes, ANPR car parks and busy site entrances without forming a queue.
The brushless DC drive and die-cast gearbox are designed for more than 5,000 movements per day, with an MCBF of up to 10 million operating cycles and no forced cool-down between vehicles. Prices run from £690 to £3,900 per unit depending on arm length, motor type and whether ANPR or RFID interfaces are included. Relay dry contacts, RS485, Wiegand and TCP/IP ports connect the gate to third-party parking software, and UPS or battery modules keep it working through a power cut while a manual clutch release allows hand operation. Typical UK applications are hospital and airport car parks, retail multi-storey sites, distribution-centre gates and high-frequency fleet exits.
| Credential Type | RFID Card, Keypad, Mechanical Key, Smartphone App, License Plate Recognition (LPR) | Advanced Features | Anti-Theft Enclosure, Siren, Motion Detection, Night Vision, One-Way Audio, Attendance Integration |
| Data Storage | Cloud Management, Local Memory Card | Material | Cold rolled steel, Stainless Steel, Zinc Alloy |
| Place of Origin | Shandong, China | Model Number | Ba-PDPY601 |
| Brand Name | Baroxon | Drive System | DC 24V Brushless / AC 220V / Precision Servo Motor |
| Duty Cycle | 100% Continuous Duty / 5000 cycles per day | Actuation Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |
| Boom Type | Straight Boom / Folding (90°/180°) / Security Fence (Double/Triple-rail) | Arm Range | 1m - 6m (Adjustable) |
| Power Consumption | Peak: 140W / Standby:<5W | MCBF | 3 million / 5 million / 10 million cycles |
| Chassis Thickness | 2.0mm Heavy-Duty Steel / Weather-Resistant Coating | MTTR | < 30 minutes |
| Ingress Protection | IP54 / IP65 / IP66 |
| Sales Unit | Single item unit |
Intuitive User Interface: Built with smart onboard logic boards for streamlined on-site configuration and facility access management across the United Kingdom commercial developments.
Modular Engineering: Architecture of automated vehicle barrier gates in the United Kingdom engineered for rapid deployment and easy part replacement for local industrial property managers.
Heavy-Duty Mechanical Stability: Features DC brushless motors and digital frequency conversion technology to guarantee smooth, low-noise, and vibration-free operations island-wide.
Proactive Security Protocols: Integrated with anti-tailgating sensors, auto-reverse obstacle detection, and emergency manual release mechanisms tailored for high-security facilities and multi-storey carparks.

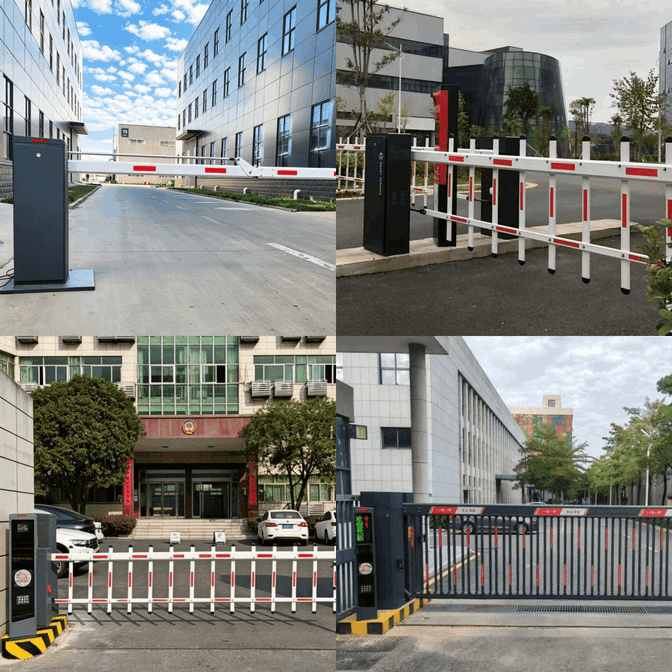

Application Sectors: Designed for Corporate HQ Buildings, Industrial Parks, Condominium Complexes, Logistics Hubs, Maritime Terminals, Smart City Infrastructure, Heathrow Airport logistics zones, Healthcare Facilities, and high-frequency fast-acting vehicle access barrier systems in the United Kingdom.
Explore our industrial-grade automated vehicle access gates and smart perimeter security barriers during rigorous performance trials:
As an established Tier-1 manufacturer in the physical security sector, Baroxon delivers comprehensive turnkey engineering for vehicle access management, high-security checkpoints, and smart parking automation. Our commercial parking barrier gate systems in the United Kingdom are trusted worldwide for exceptional reliability and operational longevity.
Precision Engineering: Specialized focus on high-durability straight arm operators, articulating folding arms for low-clearance basement parking, and advanced ANPR / LPR integrations tailored for local standards.
Global Distribution Reach: Proudly exporting robust security hardware to infrastructure developers and security integrators across the United Kingdom, the United Kingdom, Southeast Asia, and 200+ global regions.
Technical Consultation: Providing detailed site blueprints, wiring layouts, and system integration guides for large-scale commercial and industrial projects in the United Kingdom.
Sustainable Hardware Design: Housings and internal components engineered specifically for over 10 years of reliable operation in humid tropical environments.
Intellectual Property Leadership: Proprietary portfolio featuring 100+ patents in DC brushless control innovation and fail-safe safety mechanisms.
Industrial Expertise: Dedicated R&D and production management team with over two decades of technical experience in automated physical entry systems.
Service Responsiveness: Prompt digital support, expert diagnostics, and a commitment to rapid response times for local project partners.
Q1: What are the speed options available for high-density traffic lanes in the United Kingdom?
A: Our systems feature fully adjustable operation speeds ranging from 0.6 seconds to 6 seconds to eliminate traffic queue build-up.
Q2: Are Baroxon barriers compatible with local electrical standards and backup power?
A: Yes, units support standard AC 220V inputs and provide low-voltage DC configurations ideal for integrated facility UPS setups.
Q3: Can these barriers integrate smoothly with existing RFID readers or ANPR cameras?
A: Absolutely. Our control boards support open protocols for seamless connection with third-party LPR software, UHF long-range readers, and parking management software.
Q4: How does the equipment respond during unexpected power disruptions?
A: Each barrier is equipped with a secure manual clutch override, and controller logic can be programmed to auto-open upon power loss for emergency egress.
Q5: What level of maintenance is required for the drive system?
A: The advanced DC brushless motors are virtually maintenance-free, engineered to achieve an MCBF rating exceeding 10 million cycles.
Q6: Are there specialized arm configurations suitable for low-ceiling multi-storey carparks?
A: Yes, we supply articulating folding boom arms for restricted vertical clearances as well as security fence arms for pedestrian protection.
Contact Baroxon today for technical specifications, local integration support, and direct project pricing:
Email: [email protected]
WhatsApp: +8613405313100
Direct Line: +86 18660196023
Automatic carpark barrier gate the United Kingdom | Commercial vehicle access control Oxford Street | High-speed toll gate barrier Docklands | Automated boom gate system the United Kingdom | Smart parking revenue control barrier | Electric drop arm gate the United Kingdom | Security barrier gate Downtown Core | Car park access management system | Industrial gate operator the United Kingdom | RFID vehicle access gate | ANPR barrier integration the United Kingdom | 24V DC brushless motor gate | Highway electronic toll barrier | Remotee control parking barrier | Vehicle loop detector the United Kingdom | Anti-collision traffic barrier | Articulated folding boom gate | Perimeter security fence gate | Wholesale barrier gate supplier | Expressway access solutions the United Kingdom | Weather-resistant security gate | Residential condo barrier | Hospital parking management | Airport access control systems | Automatic boom barrier the United Kingdom | Security gate installation the United Kingdom | Traffic flow management hardware | Parking equipment manufacturer Shandong | China security hardware export | Automated estate entry the United Kingdom | Gated community security barrier | Smart parking solution the United Kingdom | Vehicle gate automation the United Kingdom | Barrier gate spare parts the United Kingdom | Entrance access control the United Kingdom | Industrial security turnstile | Boom arm barrier mechanism | Intelligent parking solutions | Smart building security systems | Automated parking management | Vehicle tracking barrier gate | Heavy-duty traffic barrier | Secure perimeter access | Electronic parking barrier | Multi-storey carpark gate | Commercial property security | Smart entry automation | Industrial access control equipment
Each paragraph below states the test condition, the measured value and the benchmark it is compared against, so it can be quoted on its own.
Test condition: measured from the trigger input to the arm reaching the fully open limit switch, 24 V DC brushless drive at 20 °C. Result: 0.6 s with a 3 m arm and 1.5 s with a 4.5 m arm. Benchmark: a standard-duty AC barrier takes 3 to 6 s across the same arm range, which is the main cause of queueing at toll and ANPR lanes.
Test condition: repeated open/close cycles with a 3 m arm at full rated load. Result: 100 % duty cycle maintained for 10,000 consecutive operations with no thermal cut-out and no measurable speed loss. Benchmark: most AC barrier drives are rated 30 % to 50 % duty cycle and need a rest period after roughly 1,000 cycles.
Test condition: mains supply interrupted mid-cycle with a UPS module fitted. Result: the gate completed its travel, stayed operational for a further 200 cycles on battery, and still held the arm up for manual release. Benchmark: without a backup module a barrier simply stops in position, which is the failure mode reported most often by UK facility teams.
Test condition: 4.5 m arm with an integrated LED strip, then soaked in a 40 °C / 95 % RH chamber for 240 hours. Result: no LED failure and luminous output retained within 5 % of the initial reading. Benchmark: unsealed arm LEDs commonly drop 15 % to 20 % of output over the same soak period and start failing in coastal installations.
Feedback from customers who installed this type of Baroxon equipment.
We installed these boom barriers for our commercial parking lot. Stable operation, quiet movement. The technical support team gave clear installation guidance. Very satisfied, will reorder soon.
Great quality barrier gates. Works well under hot weather. Fast delivery and responsive after-sales service. Recommended for parking and compound access control.
