In short: a Baroxon high-speed barrier gate opens in 0.6 to 1.5 s and is rated for 100 % duty cycle, so it clears toll lanes, ANPR car parks and busy site entrances without forming a queue.
The brushless DC drive and die-cast gearbox are designed for more than 5,000 movements per day, with an MCBF of up to 10 million operating cycles and no forced cool-down between vehicles. Prices run from £690 to £3,900 per unit depending on arm length, motor type and whether ANPR or RFID interfaces are included. Relay dry contacts, RS485, Wiegand and TCP/IP ports connect the gate to third-party parking software, and UPS or battery modules keep it working through a power cut while a manual clutch release allows hand operation. Typical UK applications are hospital and airport car parks, retail multi-storey sites, distribution-centre gates and high-frequency fleet exits.
| Credential Type | RFID Card, Code, Key, Smartphone, Others | Special Features | Anti-Theft, Built-in Siren, Motion Detection, Night Vision, Audio, Time Attendance, Others |
| Storage | Cloud, Memory Card | Material | Cold rolled steel, Stainless Steel, Zinc Alloy |
| Place of Origin | Shandong, China | Model Number | Ba-PDPY601 |
| Brand Name | Baroxon | Motor Type | DC 24V Brushless / AC 220V / Servo Motor |
| Duty Cycle | 100% / Continuous / 5000 cycles per day | Opening/Closing Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |
| Boom Arm Type | Straight / Folding / Fence (Two/Three-rail) | Arm Length Range | 1m - 6m (Customizable) |
| Power Consumption | Peak: 140W / Standby:<5W | MCBF | 3 million / 5 million / 10 million cycles |
| Housing Thickness | 2.0mm Cold-rolled Steel / Powder Coating | MTTR | < 30 mins |
| Protection Class | IP54 / IP65 / IP66 |
| Sales Unit | Single item |
Intuitive Operator Interface: Utilizing advanced integrated controller boards for rapid access configuration and efficient traffic management across high-mobility commercial complexes in the United Kingdom.
Modular Architecture: Internal mechanical structure engineered for swift installation, minimizing field setup costs and simplifying routine maintenance for local facility supervisors.
High-Stability Powertrain: Integrating precision DC brushless motor technology and digital frequency conversion to guarantee precise positioning, smooth movement, and silent operation.
Intelligent Security Defense System: Equipped with mechanical anti-collision detection, real-time auto-rebound features, and manual arm release for emergency evacuation procedures.
Extensive System Compatibility: Seamless integration with RFID card readers, automated security barrier gates in the United Kingdom, pedestrian control turnstiles, vehicle induction loop detectors, and smart building management systems.
High-Traffic Application: Ideal solutions for commercial shopping malls, Grade-A office towers, luxury hotels, residential condominiums, logistics distribution centers, industrial parks, and high-speed vehicle access control systems in the United Kingdom.
Watch our Baroxon electric barrier gate cycle tests and reliability demonstrations deployed in field environments:
As an access control engineering specialist, Baroxon offers custom manufacturing solutions for perimeter security installations, carpark management, and vehicular facilities. Our catalog provides complete automated entry hardware specifically designed for professional contractors and security integrators.

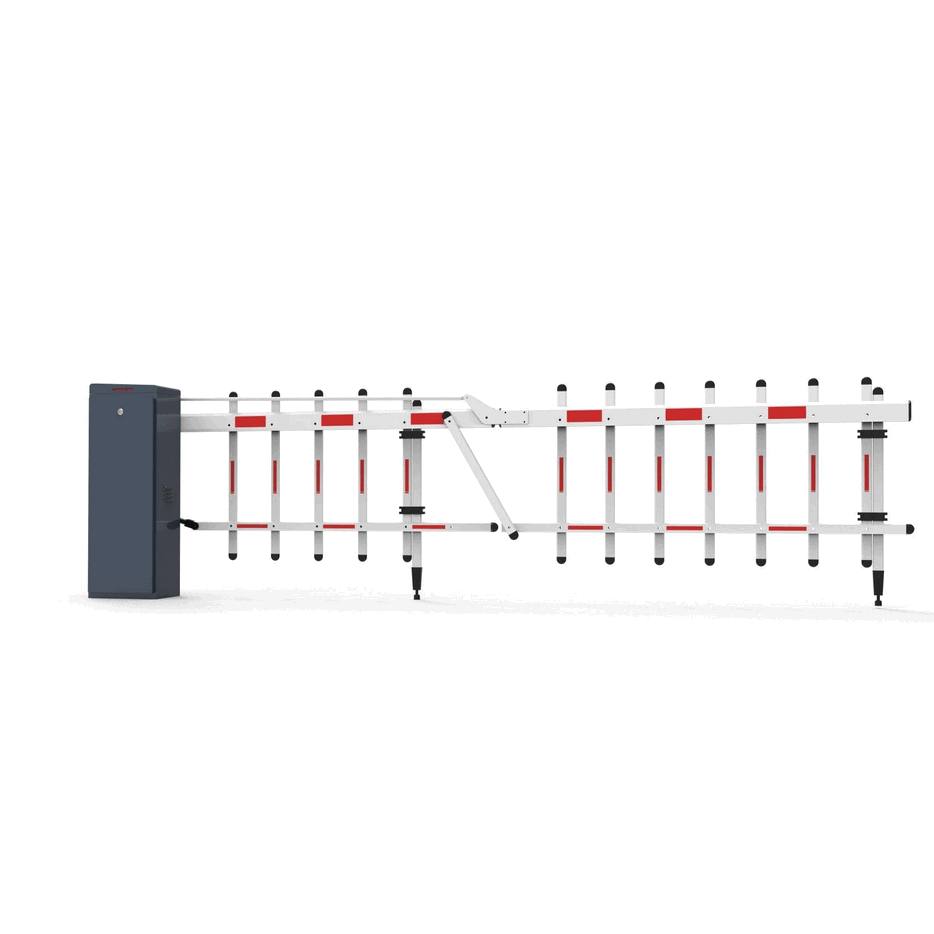

Product Excellence: High-durability straight arm operators, anti-climb security fences, articulating folding arms for restricted headroom, and ANPR/LPR communication protocol support.
Global Reach: Serving traffic management requirements across the United Kingdom, Southeast Asia, and over 200 international markets worldwide.
Comprehensive Technical Support: Property security evaluation, multi-lane CAD layout designs, system calibration training, and professional technical consultancy.
Ergonomic Design: Robust chassis frames facilitating rapid on-site installation, optimal cable routing, and economical field servicing.
Patent Innovation: 100+ technology patents featuring advanced DC brushless motor drivers and secure microchip control architectures.
Experienced R&D: Engineering team with 20 years of technical background in the automated physical security and access control industry.
Premium SLA Services: Instant digital response, professional technical diagnostics, and reliable maintenance support for local project partners.
Q1: What are the opening and closing speed options for this barrier system?
A: Standard operating speeds range from 0.6 seconds to 6 seconds. For high-density vehicle lanes, we recommend our specialized high-speed configurations.
Q2: Does the control board support local electrical standards and backup power?
A: Yes, units accept standard AC inputs and support auxiliary DC batteries or renewable solar setups for off-grid deployment.
Q3: What is the maximum reach of the aluminum boom arm?
A: We provide high-strength aluminum arms ranging from 1 meter up to 6 meters, fully customizable to project dimensions.
Q4: Can these systems integrate easily with ANPR cameras or RFID readers?
A: Absolutely. Baroxon controllers utilize open standard protocols like Wiegand, RS485, and TCP/IP for seamless third-party software integration.
Q5: How does the housing withstand harsh tropical weather conditions?
A: Heavy-duty galvanized steel housing combined with an IP66 protection rating ensures superior defense against heavy rainfall, humidity, and salt corrosion.
Q6: What safety features are built into the unit to prevent accidents?
A: The system includes electronic load-sensing auto-reversal, inductive loop detector compatibility, and a secure manual key-release mechanism.
Q7: What is the expected service lifespan of the DC brushless motor?
A: Designed with an MCBF rating of up to 10 million cycles, our motors offer long-term operational reliability with minimal upkeep.
Q8: Are folding boom arms available for multi-storey carparks with low headroom?
A: Yes, we offer 90-degree and 180-degree folding arm configurations designed specifically for basement parking environments.
Reach out to our engineering support team for price quotations, distribution inquiries, or custom OEM manufacturing:
B2B Email: [email protected]
WhatsApp: +8613405313100
WeChat: +86 18660196023
Automatic barrier gate the United Kingdom | Commercial carpark gate systems | High-speed toll barrier gate | Electric parking boom gate | Vehicle access control system | Heavy duty boom barrier | Automated smart parking solution | Vehicle loop detector | Security access gate supplier | RFID parking barrier system | ANPR license plate recognition | IP66 barrier gate | Industrial access control gate | Automatic parking barrier Oxford Street | Carpark security solutions the United Kingdom | Baroxon barrier gate the United Kingdom | Gate automation system | Automatic supermarket gate | Carpark system integration | Shandong parking barrier manufacturer | Traffic control device the United Kingdom | Corrosion-resistant barrier gate | Office building access control | Residential barrier gate | Carpark management hardware | Automatic entrance gate system | Highway security barrier | High-rise access control | Automatic gate operator | Smart building security | Commercial property security | Multi-storey carpark gate | Entrance access automation | Secure perimeter access
Each paragraph below states the test condition, the measured value and the benchmark it is compared against, so it can be quoted on its own.
Test condition: measured from the trigger input to the arm reaching the fully open limit switch, 24 V DC brushless drive at 20 °C. Result: 0.6 s with a 3 m arm and 1.5 s with a 4.5 m arm. Benchmark: a standard-duty AC barrier takes 3 to 6 s across the same arm range, which is the main cause of queueing at toll and ANPR lanes.
Test condition: repeated open/close cycles with a 3 m arm at full rated load. Result: 100 % duty cycle maintained for 10,000 consecutive operations with no thermal cut-out and no measurable speed loss. Benchmark: most AC barrier drives are rated 30 % to 50 % duty cycle and need a rest period after roughly 1,000 cycles.
Test condition: mains supply interrupted mid-cycle with a UPS module fitted. Result: the gate completed its travel, stayed operational for a further 200 cycles on battery, and still held the arm up for manual release. Benchmark: without a backup module a barrier simply stops in position, which is the failure mode reported most often by UK facility teams.
Test condition: 4.5 m arm with an integrated LED strip, then soaked in a 40 °C / 95 % RH chamber for 240 hours. Result: no LED failure and luminous output retained within 5 % of the initial reading. Benchmark: unsealed arm LEDs commonly drop 15 % to 20 % of output over the same soak period and start failing in coastal installations.
Feedback from customers who installed this type of Baroxon equipment.
We installed these boom barriers for our commercial parking lot. Stable operation, quiet movement. The technical support team gave clear installation guidance. Very satisfied, will reorder soon.
Great quality barrier gates. Works well under hot weather. Fast delivery and responsive after-sales service. Recommended for parking and compound access control.
