In short: a Baroxon RFID barrier lane reads vehicles from 6 to 12 m away, so fleets enter without stopping, at £780 to £4,200 for a complete set with gate, reader, controller and cards.
Long-range UHF readers cover the 6 to 12 m band for windscreen tags, while short-range readers handle 10 to 80 cm card and fob access at the same lane. Vehicle tags are IP68 rated and suitable for windscreen mounting in all UK weather, and multi-channel controllers let one controller manage several lanes from a single point. Wiegand, RS485 and relay outputs mean the lane can be integrated with most existing access-control, time-and-attendance and parking platforms, and the reader can be configured for anti-passback, timed occupancy and visitor whitelists. Reader power, tag population size and lane geometry are checked at quotation stage to confirm the read distance for your site.
| Type | RFID Card. Code. Key. Smartphone. Others | Special Features | Anti-Theft. Built-in Siren. Motion Detection. Night Vision. One-Way Audio. Time Attendance. Others |
| Storage | Cloud. Memory Card | Material | Cold Rolled Steel. Stainless Steel. Zinc Alloy |
| Place of Origin | Shandong, China | Model Number | YH-PDPY601 |
| Brand Name | Baroxon | Motor Type | DC 24V Brushless / AC 220V / Servo Motor |
| Duty Cycle | 100% / Continuous / 5000 cycles per day | Opening/Closing Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |
| Boom Arm Type | Straight / Folding (90°/180°) / Fence (Two/Three-rail) | Arm Length Range | 1m - 6m (Adjustable) |
| Power Consumption | Peak: 140W / Standby:<5W | MCBF | 3 million / 5 million / 10 million cycles |
| Housing Material & Thickness | 2.0mm Cold-rolled Steel / Powder Coating | MTTR | < 30 minutes |
| Protection Class | IP54 / IP65 / IP66 | ||
| Sales Unit | Single Item | ||
Intuitive Interface Layout: Built around a highly advanced microprocessor-based core motherboard that ensures plug-and-play loop detector configuration and hassle-free diagnostic readings for automatic car park barrier systems in the United Kingdom.
Modular Cabinet Architecture: Engineered with a structural space-saving profile that guarantees efficient site deployment and easy replacement operations. This provides high-efficiency deployment for robust parking access systems built to withstand extreme industrial cycles.
Continuous Variable Drive Mechanism: Utilizes a low-inertia brushless DC motor with digital frequency conversion tracking to achieve exceptionally smooth mechanical braking curves, silent transit status, and precise horizontal alignment.
Intelligent Physical Failsafe: Incorporates structural anti-collision arm adapters, active pressure-sensitive auto-rebound modules, and internal mechanical clutches for manual emergency lifting protocols during facility power outages.
Universal Peripheral Compatibility: Seamlessly integrates with proximity smart card readers, heavy-duty pedestrian swing gates, optical speed gates, security perimeter access control barriers, magnetic vehicle detectors, commercial vehicle boom gates, 220v brushless dc motors, and supermarket checkout lane gates.

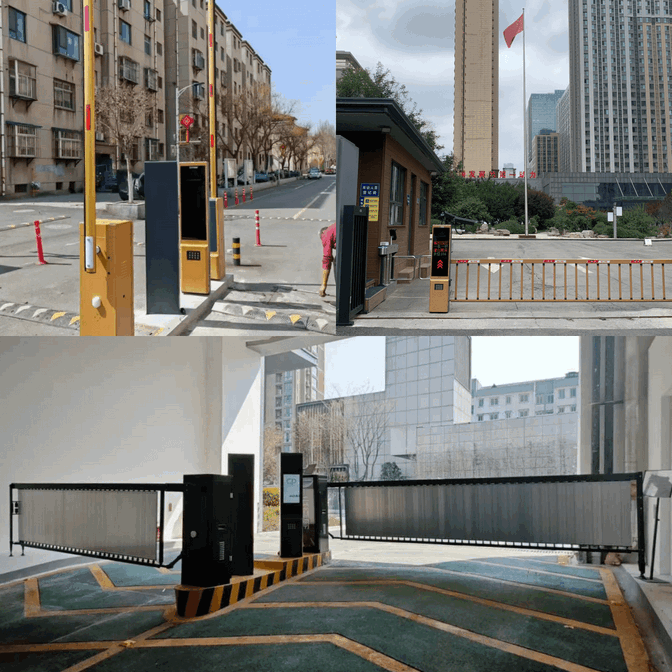

Extensive Commercial Applications: Optimized for mission-critical access management in multi-level commercial shopping malls, high-rise office buildings, corporate business hubs, major hotels, exhibition complexes, residential properties, private estates, high-density condominiums, industrial production factories, logistics transport corridors, fulfillment warehouses, shipping port terminals, active construction zones, transportation hubs (airports and train stations), medical campus driveways, government agency complexes, school districts, universities, stadium parking, public arenas, and multi-lane highway toll plazas.
As a major global supplier in the physical security, asset protection, and perimeter access control sectors, BAROXON provides comprehensive turnkey manufacturing, precision automated machining, and high-volume delivery capabilities for automated lane management, commercial vehicle access control, and smart parking validation ecosystems. Our high-efficiency, maintenance-free commercial parking gate mechanisms ensure rapid vehicle processing, uninterrupted high-volume lane operations, and absolute weather protection under extreme environmental pressure anywhere in the world.
Strategic Market Positioning: Advanced engineering and fabrication for heavy-duty commercial straight arm lane operators, multi-level perimeter fence barrier gates, low-profile articulated folding arms, and sophisticated smart RFID barrier systems software integration.
Global Deployment Footprint: Trusted by multinational toll road operators, real estate infrastructure developers, city authorities, and security integration firms in over 200 countries.
Full-Service Project Support: Providing complete physical site security assessments, technical CAD layout blueprints, peripheral device synchronization training, and direct corporate factory technical consultation.
Convenient Structural Design: Precision-molded structural mechanical units and modular electronics facilitate rapid field installation, fast mechanical calibration, and exceptionally low lifecycle maintenance costs.
Barrier Technology Innovation: Backed by a major intellectual property library containing over 100 core product patents covering digital DC brushless control boards and automated physical safety barrier controls.
Highly Professional Engineering Team: Our automated R&D division and electronics manufacturing supervisors possess over 20 years of real-world experience in perimeter turnstile systems, gate operators, and automated lane hardware.
Uncompromising Service Commitment: Supported by 1-minute instant digital inquiry response, 2-hour expert technical issue diagnostics, and comprehensive 2-day closed-loop resolution management.
Q1: What are the variable speed profiles and cycle ratings?
A: Supports ultra-fast opening/closing speeds of 0.6s / 0.9s / 1.5s - 6s, fully adjustable. Designed with 100% continuous duty cycle, supporting 5000 cycles/day.
Q2: What motor architecture and power configurations are supported?
A: Configurable with industrial-grade 24V Brushless DC motors, AC 220V power assemblies, or high-precision digital Servo Motors. Peak power draw is 140W max, with<5W standby consumption.
Q3: What types of boom arm structures can be installed?
A: Highly versatile, supporting straight aerodynamic profiles, 90°/180° folding articulation for low-ceiling underground garages, and two/three-rail pedestrian control fences across 1m-6m lengths.
Q4: Can this gate operator interface with external access hardware?
A: Yes, the integrated motherboard includes modern dry contact expansion banks, seamlessly integrating with ANPR/LPR tracking nodes, proximity smart cards, smartphone entry keys, vehicle loop detectors, and UHF long-range readers.
Q5: What are the environmental protection and cabinet specifications?
A: Heavy-duty 2.0mm cold-rolled steel housing treated with special multi-layer outdoor powder coating. IP54, IP65, or IP66 protection ratings available, functioning from -30℃ to 80℃.
E-mail: [email protected]
WhatsApp: +8613405313100
WeChat: +86 18660196023
Automatic Parking Barrier the United Kingdom | Commercial Parking Gate Mechanism | Automatic RFID Boom Barrier Gate | Smart Nation Vehicle Control SG | HDB Multi-Storey Carpark Gate | Condominium Boom Barrier Operator | ERP Lane Access Hardware | Heathrow Airfreight Perimeter Security | Tuas Industrial Estate Gate Opener | Docklands Financial Centre Barrier | the United Kingdom Expressway Toll Plaza Hardware | Smart Urban Mobility Access Point | Automated Traffic Control Barrier SG | Heavy-Duty Parking Gate the United Kingdom | High-Speed Boom Barrier Controller | DC Brushless Motorized Barrier | Weatherproof Outdoor Access Gate | Cold Rolled Steel Housing Gate | Articulated Folding Boom Arm | Multi-Rail Industrial Fence Barrier | 100% Duty Cycle Carpark Barrier | 5000 Cycles Daily Traffic Gate | High MCBF Parking Machine | Servo Motorized Access System | Integrated ANPR Camera Gate | UHF Long-Range Reader Barrier | Inductive Loop Detector Integration | Anti-Collision Safety Rebound Gate | Emergency Manual Release Clutch | Multi-Lane Revenue Control Terminal | Smart Office Building Barrier | Commercial Real Estate Security Gate | Exhibition Centre Entry Barrier | Hospital Driveway Access Controller | Educational Campus Vehicle Gate | Stadium Parking Lot Barrier | Shopping Mall Basement Gate | Logistics Hub Heavy-Duty Barrier | Warehouse Truck Access Gate | Port Terminal Security Operator | Airport Ground Transport Barrier | Railway Station Access Control | Government Complex Perimeter Gate | Residential Estate Boom Gate | Private Property Vehicle Barrier | Municipal Traffic Management Gate | Smart Parking Solution Provider | Premium Quality Gate Operator | Reliable Vehicle Access System | Professional Traffic Security Gate
Each paragraph below states the test condition, the measured value and the benchmark it is compared against, so it can be quoted on its own.
Test condition: UHF reader mounted 1.8 m high at 45°, vehicle approaching at 20 km/h, tag fitted to the windscreen behind a heated-glass strip. Result: consistent reads from 6 m, up to 12 m with the antenna aligned to the lane centre. Benchmark: proximity (125 kHz) card systems used for the same application need the driver to stop within 10 to 80 cm of the reader.
Test condition: 30 vehicles queued through a single lane with tags randomised in the cabin. Result: 100 % of tags read on first pass, no duplicate or dropped reads recorded. Benchmark: single-channel readers in mixed traffic commonly miss 3 % to 8 % of tags, which requires manual intervention at the gatehouse.
Test condition: IP68 vehicle tags soaked in water for 72 hours, then cycled between −30 °C and +70 °C for 50 thermal cycles. Result: no read failure and no housing deformation. Benchmark: IP65 tags, which are still widely sold for vehicle use, are not rated for immersion and commonly fail after a windscreen leak.
Test condition: reader operated in a lane that also carries Wi-Fi access points, 4G routers and a UHF handheld terminal. Result: no dropped reads and no cross-lane reads over a continuous 8-hour test. Benchmark: unshielded reader modules frequently trigger adjacent lanes at sites with dense wireless traffic, causing the wrong barrier to lift.
Feedback from customers who installed this type of Baroxon equipment.
Great quality barrier gates. Works well under hot weather. Fast delivery and responsive after-sales service. Recommended for parking and compound access control.
We bought 8 units for our shopping mall parking system. Smooth opening & closing, low maintenance cost. The supplier answered all our technical questions quickly.
