In short: a Baroxon high-speed barrier gate opens in 0.6 to 1.5 s and is rated for 100 % duty cycle, so it clears toll lanes, ANPR car parks and busy site entrances without forming a queue.
The brushless DC drive and die-cast gearbox are designed for more than 5,000 movements per day, with an MCBF of up to 10 million operating cycles and no forced cool-down between vehicles. Prices run from £690 to £3,900 per unit depending on arm length, motor type and whether ANPR or RFID interfaces are included. Relay dry contacts, RS485, Wiegand and TCP/IP ports connect the gate to third-party parking software, and UPS or battery modules keep it working through a power cut while a manual clutch release allows hand operation. Typical UK applications are hospital and airport car parks, retail multi-storey sites, distribution-centre gates and high-frequency fleet exits.
| Access Control Type | IU, RFID Card, Keypad Code, Key, Smartphone, ANPR Integration | Advanced Features | Anti-theft Enclosure, Integrated Siren, Motion Detection, Night Vision, One-way Audio, Attendance Integration |
| Data Storage | Cloud Architecture, Local Memory Card | Hardware Material | Cold rolled steel, Stainless Steel, Zinc Alloy |
| Place of Origin | Shandong, China | Model Number | YH-PDPY601 |
| Brand Identity | Baroxon | Powertrain Type | DC 24V Brushless / AC 220V / Precision Servo Motor |
| Duty Cycle | 100% Continuous / 5000 cycles per day | Actuation Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |
| Barrier Arm Design | Straight / Folding (90°/180°) / Safety Fence (Two/Three rails) | Reach Range | 1m - 6m (Adjustable) |
| Power Consumption | Peak: 140W / Standby:<5W | MCBF | 3 million / 5 million / 10 million cycles |
| Chassis Thickness | 2.0mm Heavy Duty Steel / Powder Coating | MTTR | < 30 minutes |
| Ingress Protection | IP54 / IP65 / IP66 |
| Unit Configuration | Single Item | Crate Dimensions | 104X37X33.5 cm |
| Gross Weight | 40.000 kg |
Intuitive Interface: Features an integrated logic board for seamless site management and rapid commissioning of your smart car park barrier gate system.
Modular Engineering: Engineered for simplified field service and quick installation, making it the top choice for commercial vehicle entry gate projects in the United Kingdom and Southeast Asia.
DC Brushless Performance: Utilizes frequency conversion technology to ensure vibration-free and low-noise operation in high-traffic commercial environments.
Intelligent Impact Protection: Includes advanced anti-collision sensors, auto-rebound logic, and fail-safe lifting mechanisms during power outages.

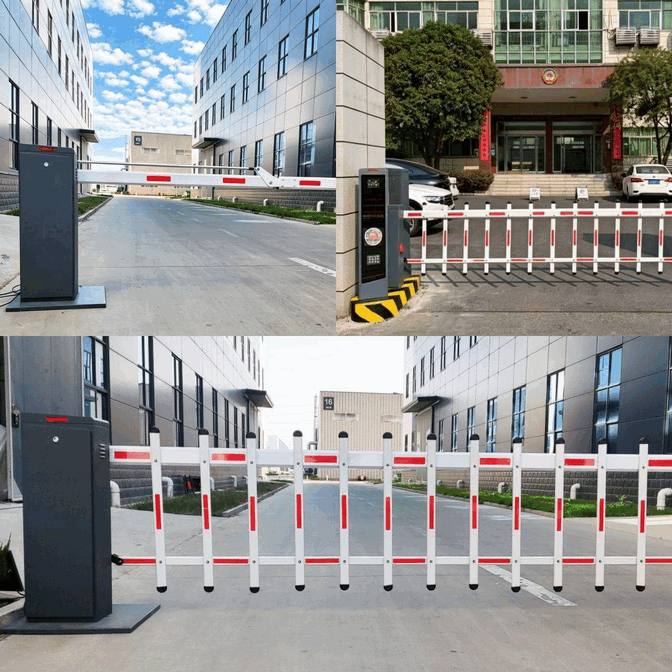

Application Sectors: Ideal for Corporate Parks, Shopping Malls, Gated Residential Communities, Industrial Logistics Hubs, International Airports, and high-speed toll gate barriers.
Discover our industrial-grade vehicle access solutions in action, demonstrating high-frequency durability and smart integration:
As a leading engineering firm in perimeter security, Baroxon provides turnkey manufacturing for high-performance commercial parking gate mechanisms, transit entry security, and smart parking management deployments.
Strategic Engineering Focus: Specializing in heavy-duty straight arm operators, articulating folding barriers for low-clearance garages, and advanced LPR/ANPR integration.
Global Distribution Footprint: Trusted by toll operators and security contractors in the United Kingdom, USA, UK, Australia, and 200+ other regions.
Full-Cycle Project Support: Offering expert site assessment, technical blueprints, and hands-on installation training for perimeter security hardware.
Durable Mechanical Design: Precision-engineered internal components ensure rapid deployment and simplified long-term maintenance.
Innovation & IP: Robust portfolio of 100+ patents in DC brushless control technology and fail-safe safety logic.
Veteran Engineering Team: Our R&D management brings 20+ years of experience in industrial access control manufacturing.
SLA Commitment: Providing a 1-minute initial response time and 48-hour resolution protocol for all technical inquiries.
Q1: What is the optimal transit speed for high-traffic lanes?
A: Our standard actuation ranges from 0.8 to 6 seconds. For busy highway toll gates or commercial transit hubs, we provide ultra-fast motor configurations to maximize vehicle throughput.
Q2: Is the hardware compatible with local power standards and renewable energy?
A: Yes, we support universal AC 110V/220V inputs. We also offer low-voltage DC solutions specifically optimized for solar-powered remote locations.
Q3: Can these barriers be integrated with third-party software?
A: Absolutely. Our controllers interface seamlessly with ANPR, RFID proximity systems, QR readers, and most commercial building management software via dry contacts or RS485.
Q4: What safety protocols protect vehicles and pedestrians?
A: Baroxon systems feature intelligent impact sensing, auto-reverse logic upon obstruction, and compatibility with infrared photocells and vehicle loop detectors. A manual mechanical clutch is provided for power-loss scenarios.
Q5: What is the estimated life cycle of the DC motor?
A: Our brushless motors are rated for over 10 million operation cycles (MCBF), ensuring long-term reliability with near-zero routine maintenance.
Contact the Baroxon engineering team for quotes, tenders, and custom manufacturing:
Email: [email protected]
WhatsApp/WeChat: +8613405313100
Automatic Barrier Gate the United Kingdom | Commercial Parking Gate System | High-Speed Toll Barrier Gate | Electric Boom Barrier | Vehicle Access Control the United Kingdom | Traffic Management System | Car Park Entry Solution | Heavy Duty Security Gate | Automated Driveway Barrier | Parking Revenue Hardware | ANPR Integrated Barrier | Highway Security Gate | Vehicle Loop Detector | Anti-collision Traffic Barrier | Industrial Perimeter Security | RFID Gate Controller | Motorized Parking Barrier | 24V DC Brushless Operator | Articulated Arm Barrier | Fence Model Boom Gate | Toll Infrastructure | Remotee Access Entry System | Pedestrian Control Barrier | Speed Gate Turnstile | Access Control Wholesale | Smart Facility Management | Weather-proof Security Hardware | Checkpoint Traffic Barrier | Automated Entry Solutions | Gated Community Security | Parking Gate Maintenance | the United Kingdom Security Systems | Trafford Park Industrial Access | Heathrow Traffic Control | Barrier Gate Supplier the United Kingdom | Smart Urban Mobility | IU Sensor Integration | ERP Barrier System | Smart Nation Access Control | Smart Parking Technology SG | Commercial Carpark Barrier | Boom Gate Manufacturer | Intelligent Traffic Barrier | Heavy Duty Barrier Gate | Automated Parking System | Secured Vehicle Access | Vehicle Entry Automation | High Frequency Gate Operator | Industrial Gate Automation | Smart Parking Solution the United Kingdom
Each paragraph below states the test condition, the measured value and the benchmark it is compared against, so it can be quoted on its own.
Test condition: measured from the trigger input to the arm reaching the fully open limit switch, 24 V DC brushless drive at 20 °C. Result: 0.6 s with a 3 m arm and 1.5 s with a 4.5 m arm. Benchmark: a standard-duty AC barrier takes 3 to 6 s across the same arm range, which is the main cause of queueing at toll and ANPR lanes.
Test condition: repeated open/close cycles with a 3 m arm at full rated load. Result: 100 % duty cycle maintained for 10,000 consecutive operations with no thermal cut-out and no measurable speed loss. Benchmark: most AC barrier drives are rated 30 % to 50 % duty cycle and need a rest period after roughly 1,000 cycles.
Test condition: mains supply interrupted mid-cycle with a UPS module fitted. Result: the gate completed its travel, stayed operational for a further 200 cycles on battery, and still held the arm up for manual release. Benchmark: without a backup module a barrier simply stops in position, which is the failure mode reported most often by UK facility teams.
Test condition: 4.5 m arm with an integrated LED strip, then soaked in a 40 °C / 95 % RH chamber for 240 hours. Result: no LED failure and luminous output retained within 5 % of the initial reading. Benchmark: unsealed arm LEDs commonly drop 15 % to 20 % of output over the same soak period and start failing in coastal installations.
Feedback from customers who installed this type of Baroxon equipment.
Great quality barrier gates. Works well under hot weather. Fast delivery and responsive after-sales service. Recommended for parking and compound access control.
These barriers handle heavy daily vehicle traffic reliably. Robust metal housing, resistant to outdoor weather. Happy with this purchase.
