In short: a Baroxon high-speed barrier gate opens in 0.6 to 1.5 s and is rated for 100 % duty cycle, so it clears toll lanes, ANPR car parks and busy site entrances without forming a queue.
The brushless DC drive and die-cast gearbox are designed for more than 5,000 movements per day, with an MCBF of up to 10 million operating cycles and no forced cool-down between vehicles. Prices run from £690 to £3,900 per unit depending on arm length, motor type and whether ANPR or RFID interfaces are included. Relay dry contacts, RS485, Wiegand and TCP/IP ports connect the gate to third-party parking software, and UPS or battery modules keep it working through a power cut while a manual clutch release allows hand operation. Typical UK applications are hospital and airport car parks, retail multi-storey sites, distribution-centre gates and high-frequency fleet exits.
| System Type | RFID Card | Keypad Code | Mechanical Key | Smartphone App | LPR Integration | Special Features | Anti-Theft Enclosure | Built-In Siren | Motion Detection | Night Vision | One-Way Audio | Time & Attendance Integration |
| Data Storage | Cloud Architecture | Local Memory Card | Material Grade | Cold rolled steel | Stainless Steel | Zinc Alloy |
| Place of Origin | Shandong, China | Model Number | Ba-PDPY601 |
| Brand Name | Baroxon | Motor Drive Type | DC 24V Brushless / AC 220V / Precision Servo Motor |
| Duty Cycle | 100% / Continuous / 5000 cycles per day | Opening/Closing Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |

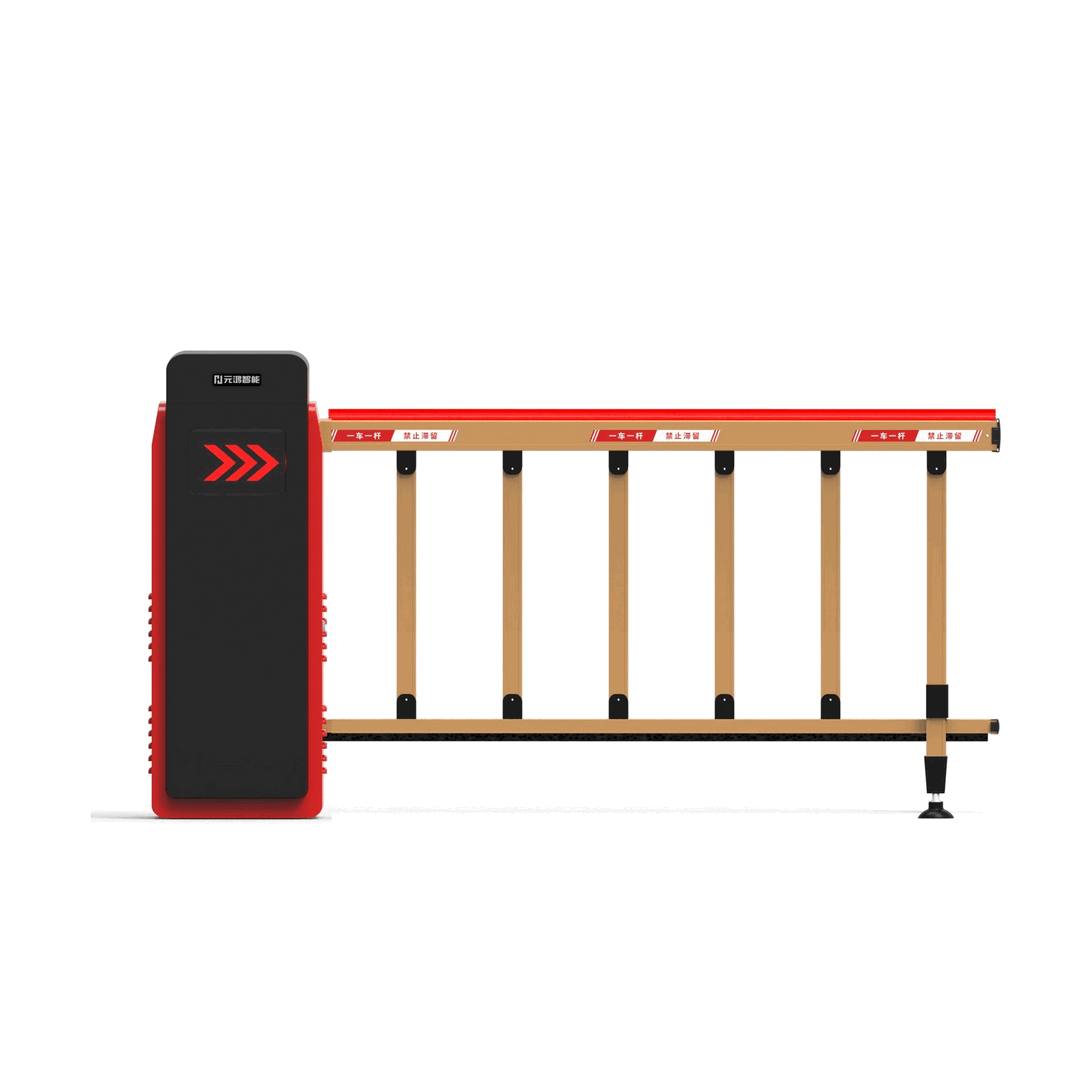

| Boom Arm Configurations | Straight Arm / Articulated Folding (90°/180°) / Security Fence (Two/Three-rail) | Arm Length Range | 1m - 6m (Customizable) |
| Power Consumption | Peak: 140W / Standby: <5W | MCBF | 3 million / 5 million / 10 million times |
| Housing Chassis & Finish | 2.0mm Cold-rolled Steel / Weatherproof Powder Coating | MTTR | < 30 mins |
| Protection Class | IP54 / IP65 / IP66 |
| Selling Units | Single item crate |
User-Friendly Operator Interface: Features a state-of-the-art integrated motherboard for intuitive terminal calibration and multi-lane facility deployment.
Modular Internal Architecture: Advanced Automated Traffic Barriers structural design ensures swift field installation, optimized wiring layout, and effortless maintenance routines.
Heavy-Duty Mechanical Core: Driven by an industrial-grade DC brushless motor and digital frequency conversion technology, delivering flawless positioning accuracy, smooth dampening control, and whisper-quiet operations.
Proactive Vehicle Safety Systems: Outfitted with advanced multi-tier security protection, including built-in anti-collision sensor mechanics, automatic reverse rebound on obstruction, and a manual clutch arm release during power-cut situations.
Comprehensive Access Control Integration: Natively engineered to work with contactless smart card readers, automated pedestrian swing turnstiles, high-speed speed gates, perimeter crowd control systems, magnetic vehicle induction loop detectors, parking lot barrier gate 220v brushless dc motor cabinets, and checkout retail entrance gates.

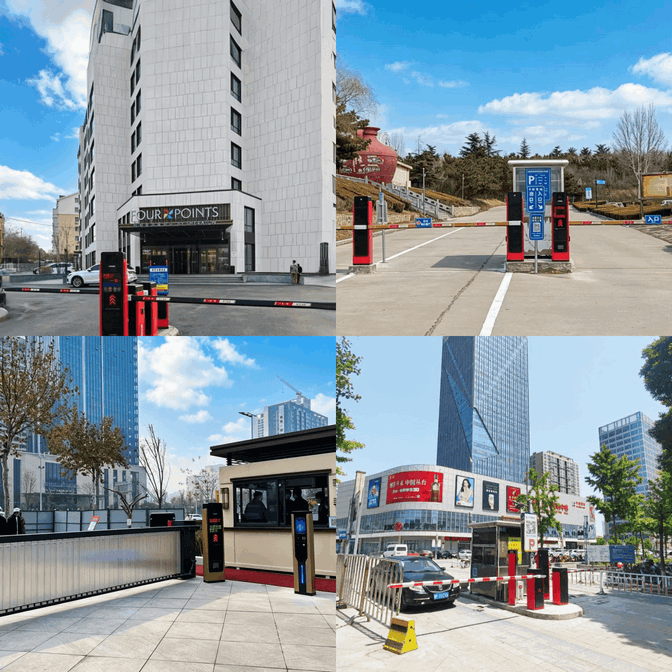

High-Frequency Application Scenarios: Engineered specifically to secure busy commercial shopping malls, corporate headquarters, transit terminals, exhibition centers, gated residential estates, industrial logistics hubs, manufacturing complexes, marine port checkpoints, infrastructure construction zones, international airports, medical centers, university campuses, sports arenas, and automated highway toll Plazas.
Watch our commercial-grade vehicle lane control gates and heavy-duty automatic barrier operators undergoing rigorous quality assurance testing and active loop sensor diagnostics:
As an industry-leading B2B global supplier in the physical security and smart entrance marketplace, Baroxon specializes in full-cycle manufacturing and technical engineering for vehicle access control, high-security facility perimeters, and cloud-managed car park complexes. Our rugged Commercial Parking Lot Gate Mechanism delivers uncompromised reliability for general contractors, commercial integrators, and security wholesale networks worldwide.
Q1: What are the dynamic speed options available for heavy-traffic access points?
A: The native mechanical speed can be adjusted between 0.6 seconds and 6 seconds, depending heavily on the configured powertrain gear ratio and arm length. For high-volume multi-lane plazas requiring zero latency, our specialized High-Speed Toll Plaza Barrier Gates provide ultra-fast throughput while preventing traffic bottlenecks.
Q2: Does the internal control board support dual-voltage inputs and renewable solar arrays?
A: Yes, the integrated control cabinet handles standard AC 110V/220V municipal power grids flawlessly. For remote construction checkpoints or off-grid properties, our energy-efficient DC motherboard controllers interface natively with low-voltage solar panel matrices and backup storage batteries.
Q3: What is the maximum physical boom length supported by the Ba-PDPY601 system?
A: The system supports premium aluminum alloy boom profiles spanning from 1 meter up to 6 meters. We provide custom counterweight tuning at the factory to match your specific lane length requirements, ensuring perfect torque balance.
Q4: Can these automated barriers connect to proprietary LPR or corporate RFID networks?
A: Absolutely. All Baroxon barrier operators feature open-architecture terminal strips supporting Wiegand, RS485, and direct dry-contact relays. This allows seamless plug-and-play communication with License Plate Recognition (LPR/ANPR) camera systems, long-range UHF proximity readers, ticket validators, and security software networks.
Q5: Are these units engineered to handle severe weather, sub-zero temperatures, and coastal salt spray?
A: Yes. The outer enclosure is fabricated from 2.0mm high-tensile cold-rolled steel treated with marine-grade anti-corrosive powder coating. The entire assembly meets strict IP54, IP65, or IP66 environmental ingress ratings, guaranteeing reliable outdoor operation under torrential rains, sandstorms, and sub-zero blizzards.
Q6: What integrated safety layers prevent vehicle damage or arm strikes?
A: The system provides advanced multi-layered vehicle safety protection, featuring internal digital torque profiling that triggers an instant auto-rebound upon structural obstruction. It also includes dedicated inputs for active infrared photo-eyes, vehicle induction loop detectors, and a manual mechanical clutch release to easily raise the arm by hand during a site-wide blackouts.
Q7: What is the certified lifespan rating of the brushless motor assembly?
A: Powered by our advanced sinus-link mechanical movement and high-durability DC brushless core, our gates deliver a verified Mean Cycles Between Failure (MCBF) of up to 10 million operations, translating to decades of trouble-free performance with zero routine component lubrication overhead.
Contact the Baroxon engineering desk today for specialized technical documentation, bulk project tender pricing, and global integrator partnership contracts:
Global B2B Tender Desk: [email protected]
Technical Project WhatsApp Line: +8613405313100
Corporate WeChat Desk: +86 18660196023
Automated Traffic Barriers | Commercial Parking Lot Gate Mechanism | High-Speed Toll Plaza Barrier Gates | Automatic Parking Lot Gate | Heavy Duty Boom Barrier Gate | Industrial Traffic Control Barrier | Automatic Parking Lot Gate Opener | Commercial Driveway Access Gate | Electric Security Boom Gate | Automated Drop Arm Barrier | Parking Revenue Control Systems | Commercial Perimeter Access Gate | Automatic Boom Arm Supplier | Anti-Crash Highway Toll Barrier | Vehicle Loop Detector Hardware | Remotee Control Commercial Gate Operator | Automated Vehicle Barrier Systems | Physical Perimeter Security Solutions | RFID Access Control Gate Barrier | License Plate Recognition Camera Gate | Heavy Duty Security Gate Enclosure | 24V DC Brushless Gate Operator | Industrial Access Control Turnstiles | Articulated Folding Arm Gate Mechanism | Multi-Tier Fence Boom Barrier | Parking Management Hardware Wholesaler | Roadway Security Barriers | Automatic Entrance Control Systems | Electric Car Park Barrier Unit | Contactless Card Reader Checkpoint | Automatic Swing Barrier Turnstile | Speed Gate Access Pedestrian Control Barriers | Parking Lot Barrier Gate 220v Brushless DC Motor | Supermarket Entrance Gate System | Shandong Engineering Security Gate Factory
Each paragraph below states the test condition, the measured value and the benchmark it is compared against, so it can be quoted on its own.
Test condition: measured from the trigger input to the arm reaching the fully open limit switch, 24 V DC brushless drive at 20 °C. Result: 0.6 s with a 3 m arm and 1.5 s with a 4.5 m arm. Benchmark: a standard-duty AC barrier takes 3 to 6 s across the same arm range, which is the main cause of queueing at toll and ANPR lanes.
Test condition: repeated open/close cycles with a 3 m arm at full rated load. Result: 100 % duty cycle maintained for 10,000 consecutive operations with no thermal cut-out and no measurable speed loss. Benchmark: most AC barrier drives are rated 30 % to 50 % duty cycle and need a rest period after roughly 1,000 cycles.
Test condition: mains supply interrupted mid-cycle with a UPS module fitted. Result: the gate completed its travel, stayed operational for a further 200 cycles on battery, and still held the arm up for manual release. Benchmark: without a backup module a barrier simply stops in position, which is the failure mode reported most often by UK facility teams.
Test condition: 4.5 m arm with an integrated LED strip, then soaked in a 40 °C / 95 % RH chamber for 240 hours. Result: no LED failure and luminous output retained within 5 % of the initial reading. Benchmark: unsealed arm LEDs commonly drop 15 % to 20 % of output over the same soak period and start failing in coastal installations.
Feedback from customers who installed this type of Baroxon equipment.
We installed these boom barriers for our commercial parking lot. Stable operation, quiet movement. The technical support team gave clear installation guidance. Very satisfied, will reorder soon.
Great quality barrier gates. Works well under hot weather. Fast delivery and responsive after-sales service. Recommended for parking and compound access control.
